Sunroof / Moonroof: Adjustments

Roof Opening Panel Alignment

Service Repair No - 76.84.82

1. NOTE: The roof opening panel must be closed

Check the alignment of the roof opening panel.
^ The roof opening panel should be central in the roof opening.
^ The roof opening panel should be level with the roof, or no more than 1mm (0.040 inch) above the roof.

2 Raise the roof opening panel glass.
^ Open the roof opening panel shield.

3. Release the upper edges of the RH and LH roof opening panel side trims.







4. Close the roof opening panel.

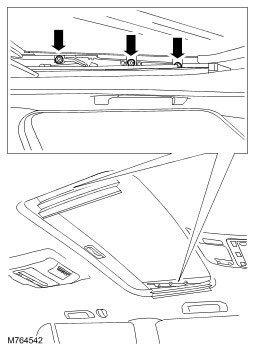

5. Loosen the 6 screws.







6. Align the roof opening panel glass.
^ Tighten the screws to 6 Nm (4 ft. lbs.).

7. Align the roof opening panel glass.
8. Secure the upper edges of the RH and LH roof opening panel side trims.
9. Close the roof opening panel glass.
^ Close the roof opening panel shield.
