Sunroof / Moonroof: Service and Repair

Roof Opening Panel

Service Repair No - 76.84.01

Remove

1. Open roof opening panel.

2. Make the SRS system safe.

3. Remove 'A' post upper finishers.

4. Remove 'B' post finishers.

5. Release both 'D' post upper trim finishers.

6. Remove 'E' post finishers.

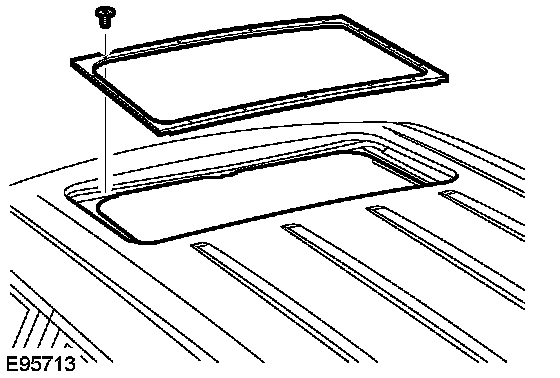

7. Remove roof opening panel glass.

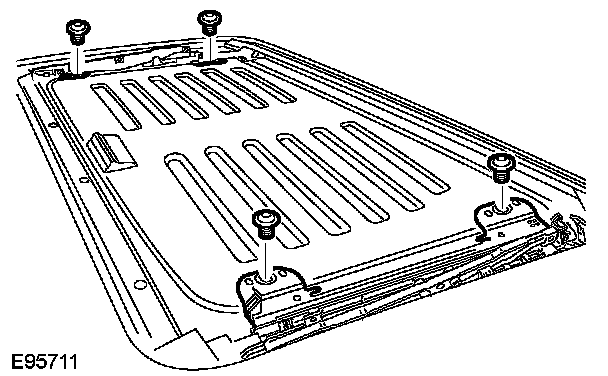

8. Remove four Torx bolts securing roof opening panel trim to sliding assembly.





9. Push roof opening panel trim sliding assemblies backwards.





10. Remove 15 Torx screws securing headlining to roof opening panel and remove clamp plate.





11. Remove sun visors.

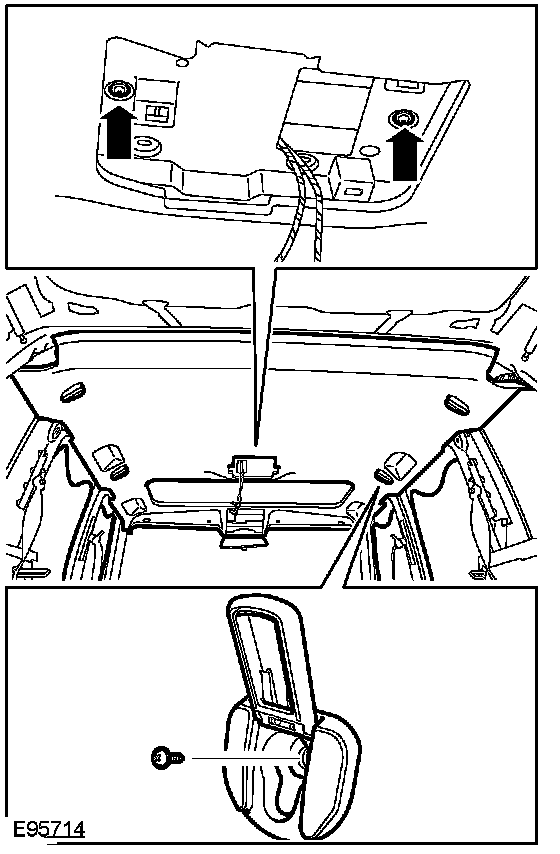

12. Remove front console from headlining.

13. Remove rear console from headlining.

14. Remove grab handles.

15. Open flap, remove four screws securing cargo net upper anchor finishers and remove finishers.





16. Carefully release the clip securing rear edge of headlining.





17. Remove four screws securing headlining.

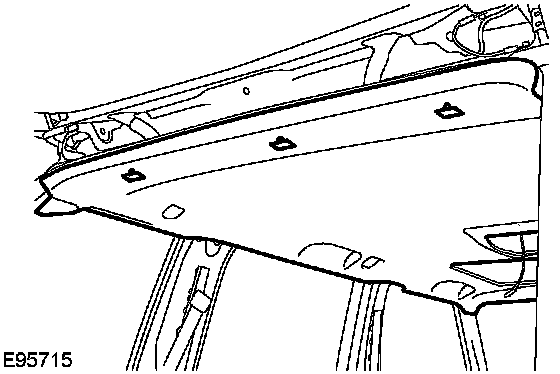

18. With assistance, carefully lower headlining.

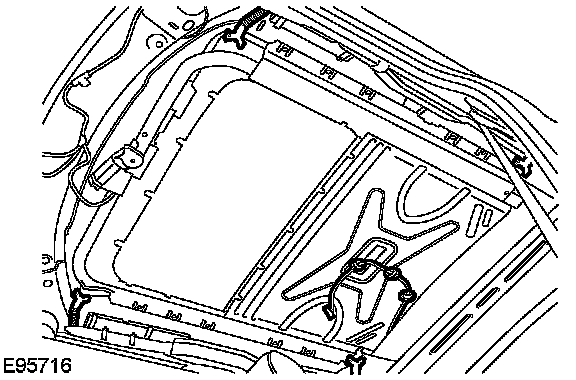

19. Release drain tubes from sun roof.





20. Release rear console harness from roof opening panel.

21. Disconnect electrical connector from roof opening panel motor.





22. Remove Allen screw securing motor and roof opening panel.

23. Remove two bolts with special washers securing forward edge of roof opening panel.





24. Remove ten bolts securing roof openig panel and with assistance, remove the roof opening panel.

Install

1. With assistance, install roof opening panel and tighten bolts evenly to 10 Nm (7 ft. lbs.).

2. Tighten Allen screw to 6 Nm (4.4 ft. lbs.).

3. Connect electrical connector to motor.

4. Position and secure rear console harness.

5. Ensure drain tubes are clear.

6. Connect drain tubes to roof opening panel.

7. With assistance, align headlining and secure with screws.
.
8. Secure the clip at headlining rear edge.
.
9. Install four screws securing headlining.

10. Install cargo net anchor finishers and secure with screws.

11. Install grab handles.

12. Install rear console.

13. Install front console.

14. Install sun visors.

15. Install roof opening panel glass.

16. Align roof opening panel trim sliding assemblies to bolt holes.

17. Install and tighten Torx bolts securing roof opening panel trim to sliding assemblies.

18. Instal 'E' post finishers.

19. Install 'D' post upper finishers.

20. Install 'B' post finishers.

21. Install 'A' post upper finishers.

22. Close roof opening panel.

23. Initialize roof opening panel.
