Rear Seat

Rear Seat

Service Repair No - 78.10.70/78.10.71

Removal
1. Remove the 2 bolts from the front of the rear seat hinge plates.
^ Fit protection around the door aperture to protect the interior.
^ Remove the 2 bolt covers from the front of the rear seat hinge plates.





2. Fold the rear seat fully forwards.
^ Release the rear seat backrest catch.

CAUTION: Make sure no damage is caused to the vehicle trim when removing the rear seat.

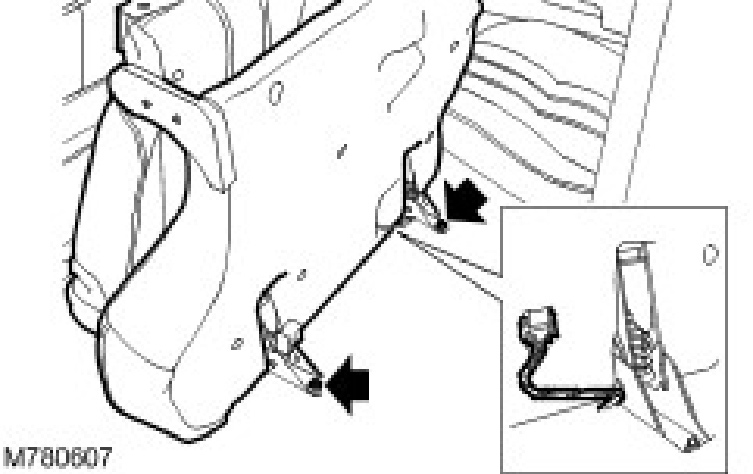

3. With assistance carefully remove the rear seat.
^ Disconnect the electrical connector.
^ Remove the 2 nuts from the rear of the rear seat hinge plates.





Installation

CAUTION: Make sure no damage is caused to the vehicle trim when installing the rear seat.

1. With assistance carefully install the rear seat.
^ Install the 2 nuts to the rear of the rear seat hinge plates.
^ Tighten to 25 Nm (18 ft. lbs.).
^ Connect the electrical connector.
2. Fold the rear seat fully rearwards.
^ Secure the rear seat backrest catch.
3. Install the 2 bolts to the front of the rear seat hinge plates.
^ Tighten to 25 Nm (18 ft. lbs.).
^ Install the 2 bolt covers to the front of the rear seat hinge plates.
^ Remove the protection from around the door aperture.
