Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Motor-Headrest-RH

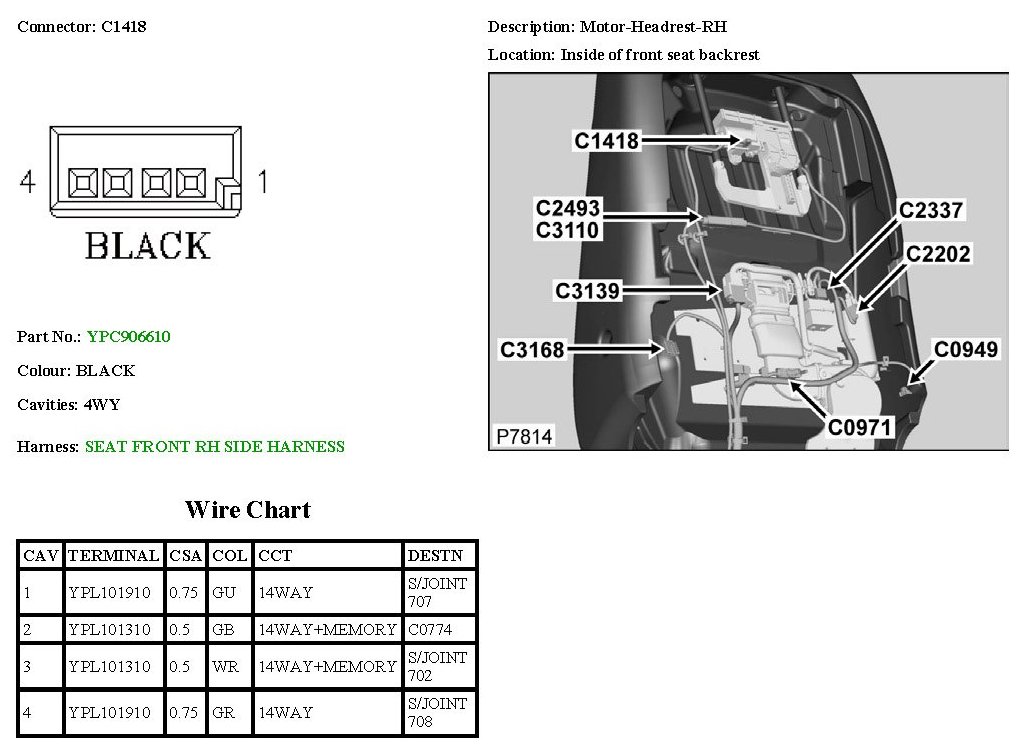

Motor-Headrest-RH

C1418:
