Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0001 - C0100 >> C0018

C0018

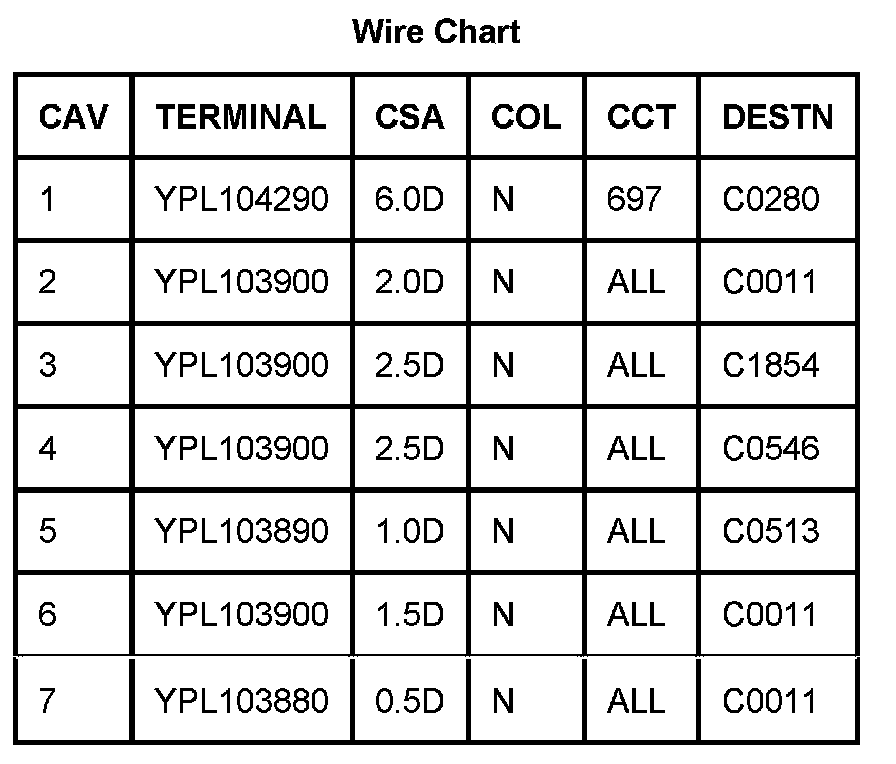

C0018 (Part 1):

C0018 (Part 2):
