Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0201 - C0300 >> C0251

C0251

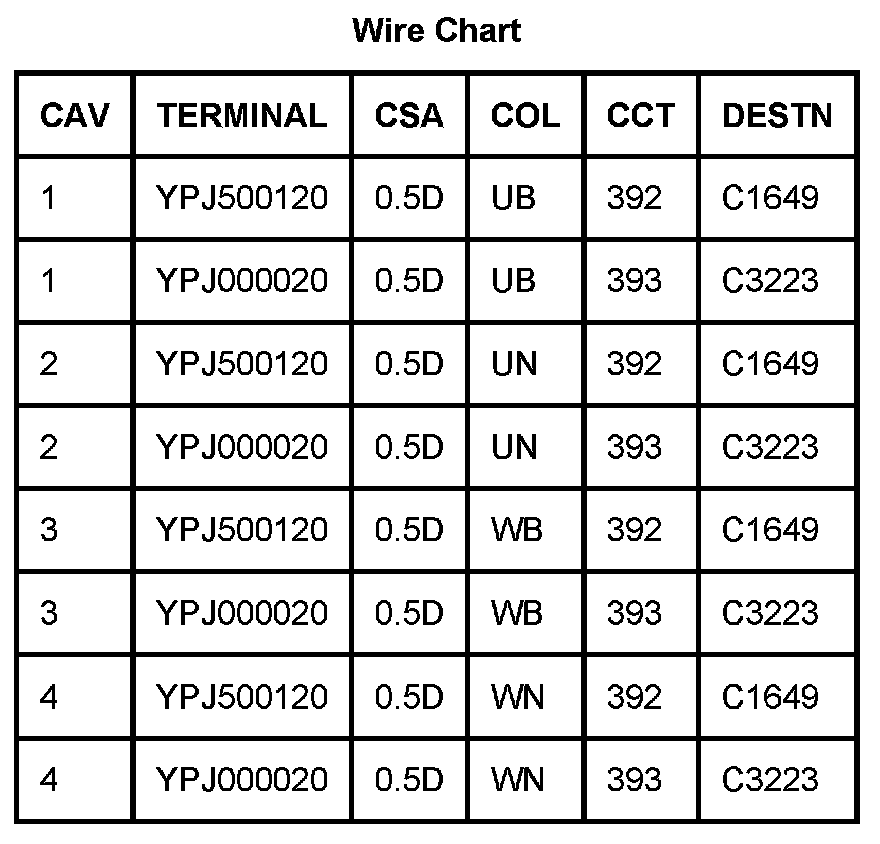

C0251 (Part 1):

C0251 (Part 2):
