Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0401 - C0500 >> C0463

C0463

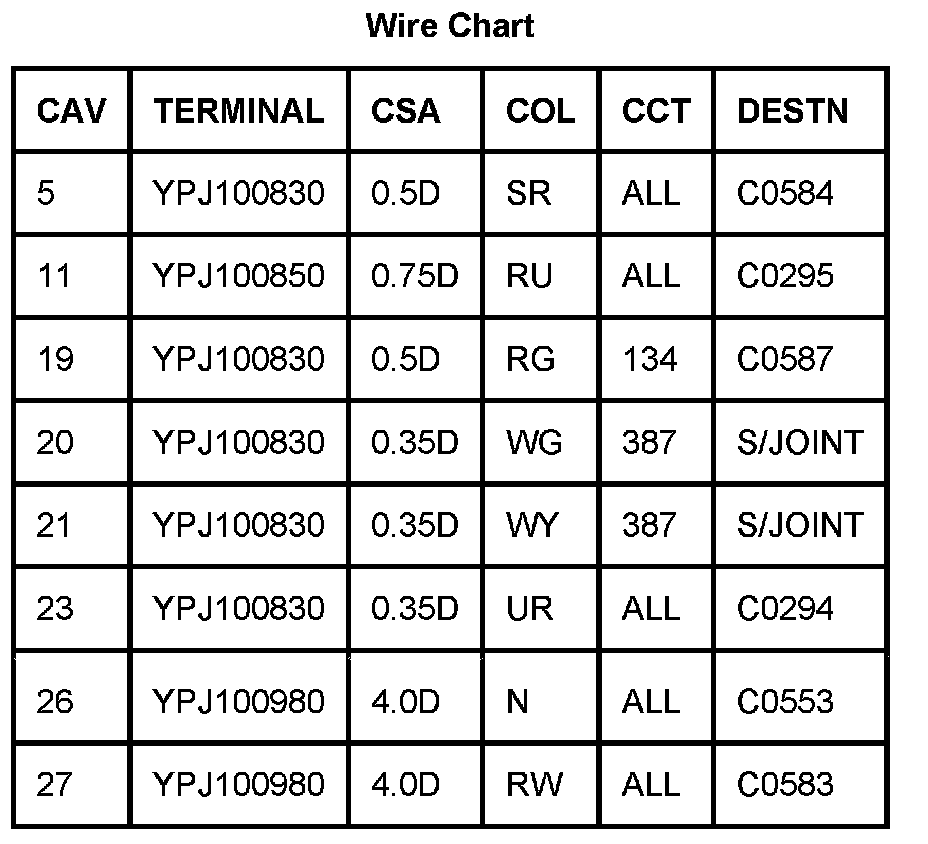

C0463 (Part 1):

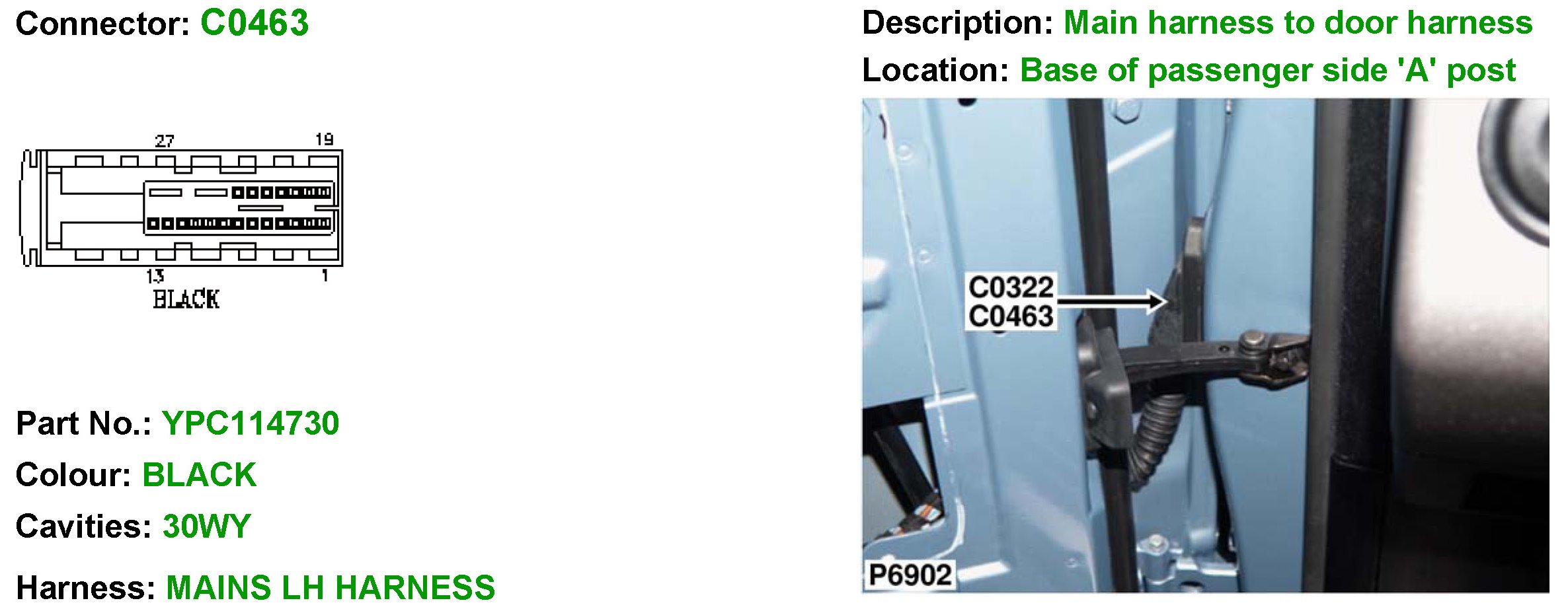

C0463 (Part 2):
