Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0501 - C0600 >> C0572

C0572

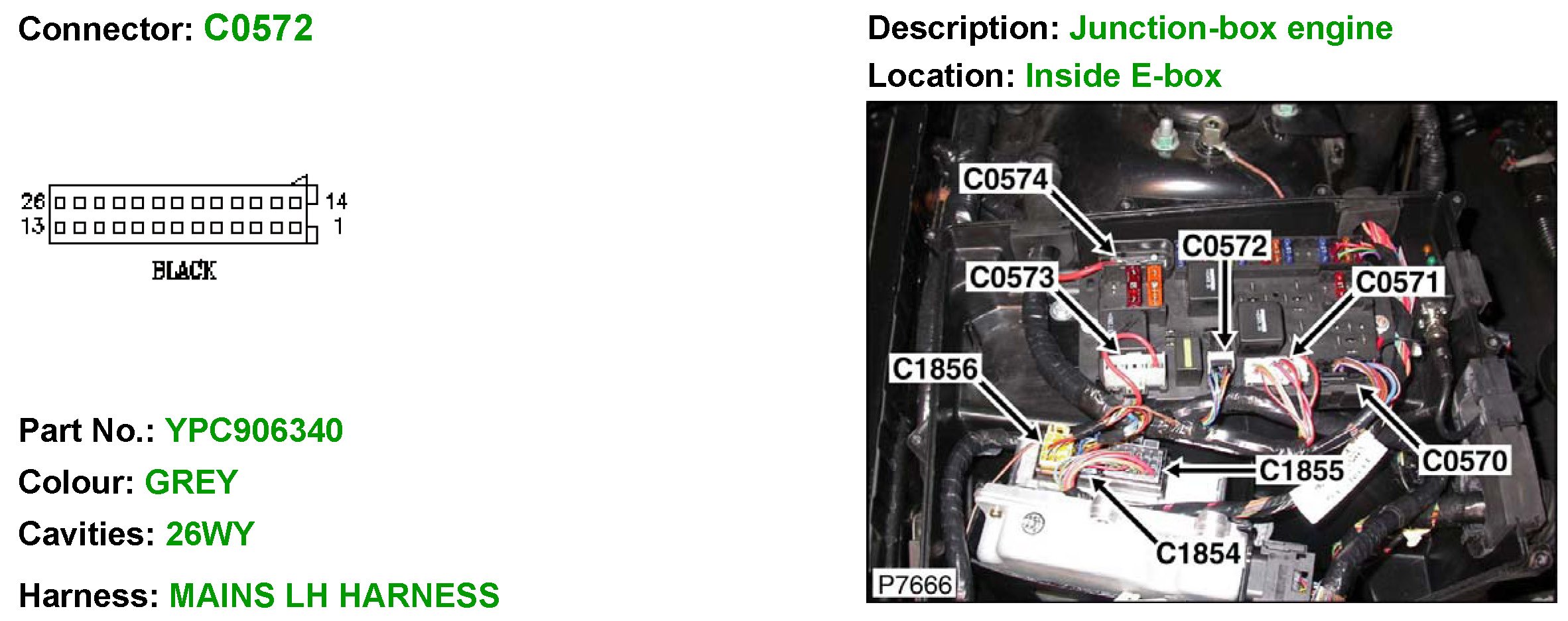

C0572 (Part 1):

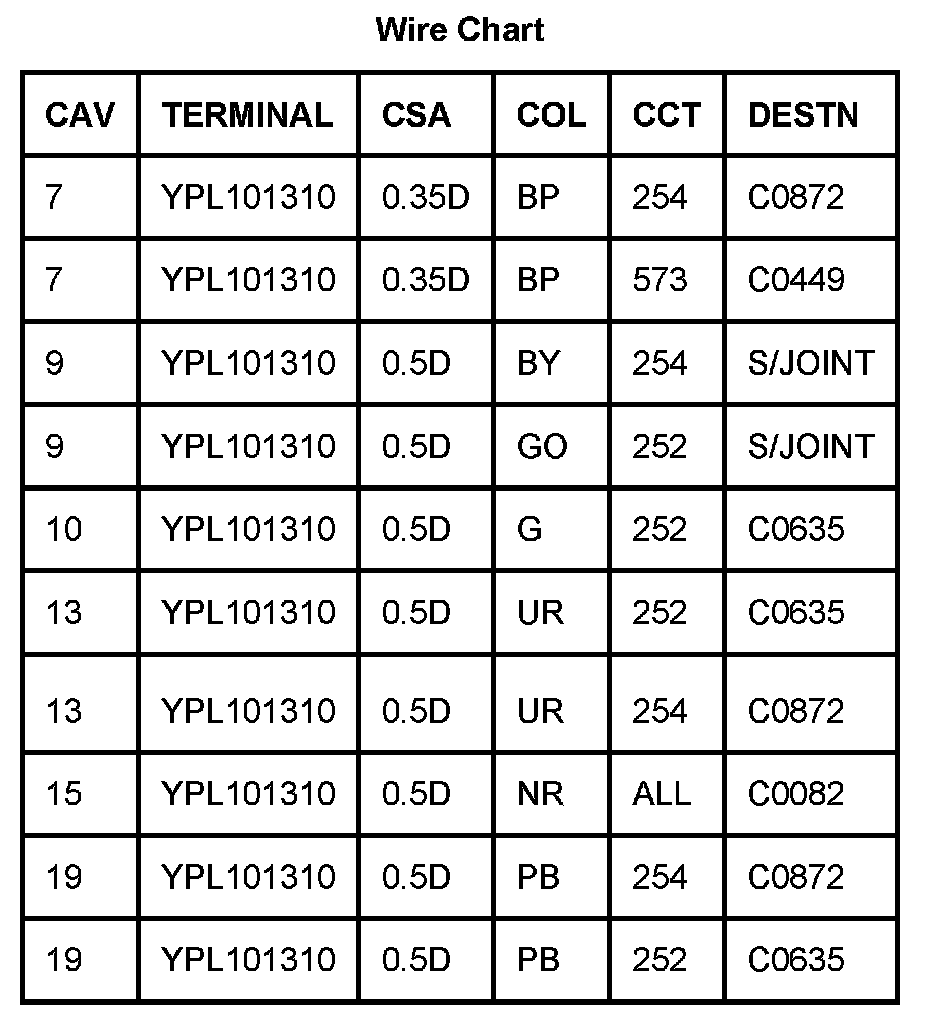

C0572 (Part 2):
