Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0601 - C0700 >> C0621Q

C0621Q

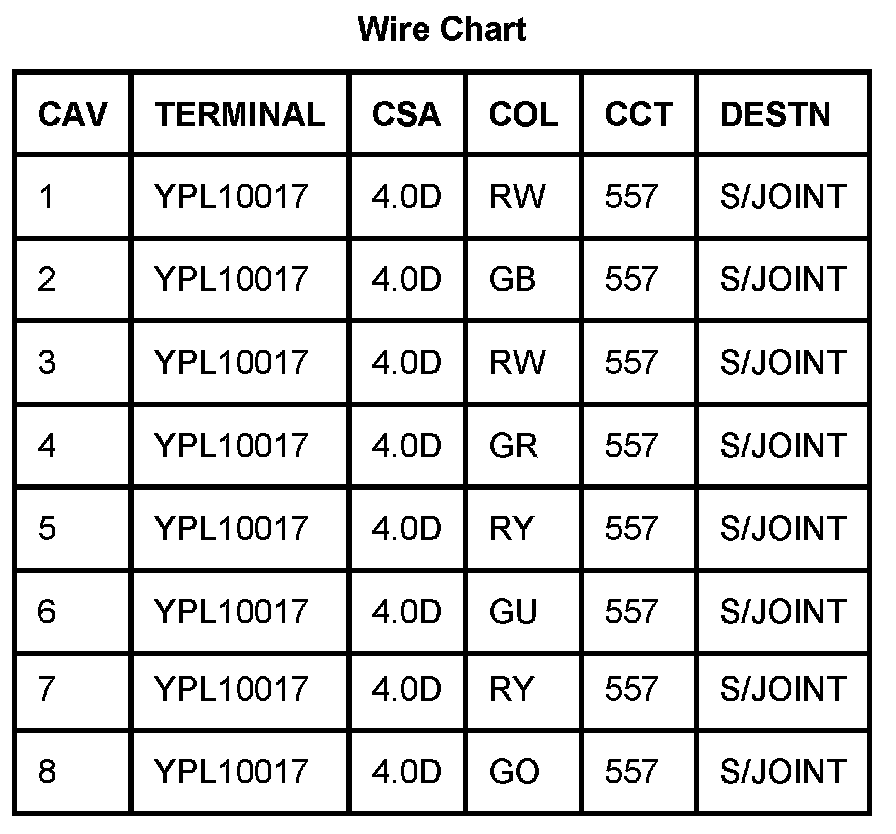

C0621Q (Part 1):

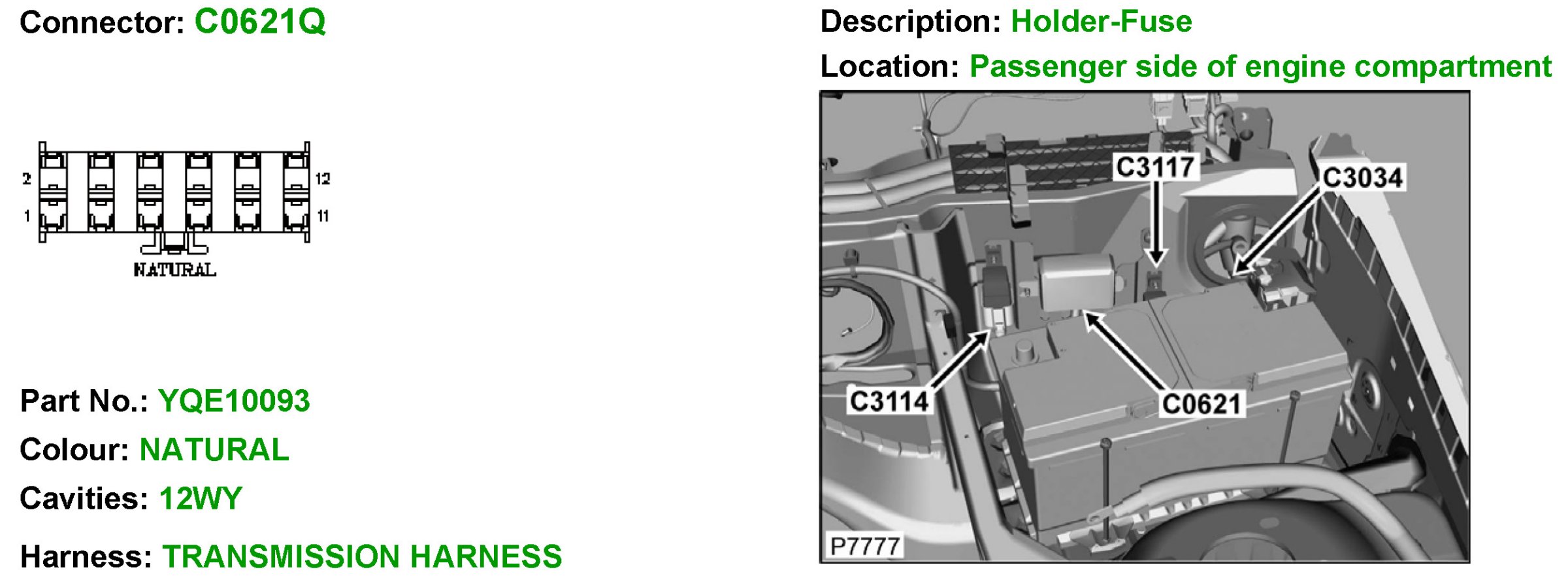

C0621Q (Part 2):
