Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0601 - C0700 >> C0661

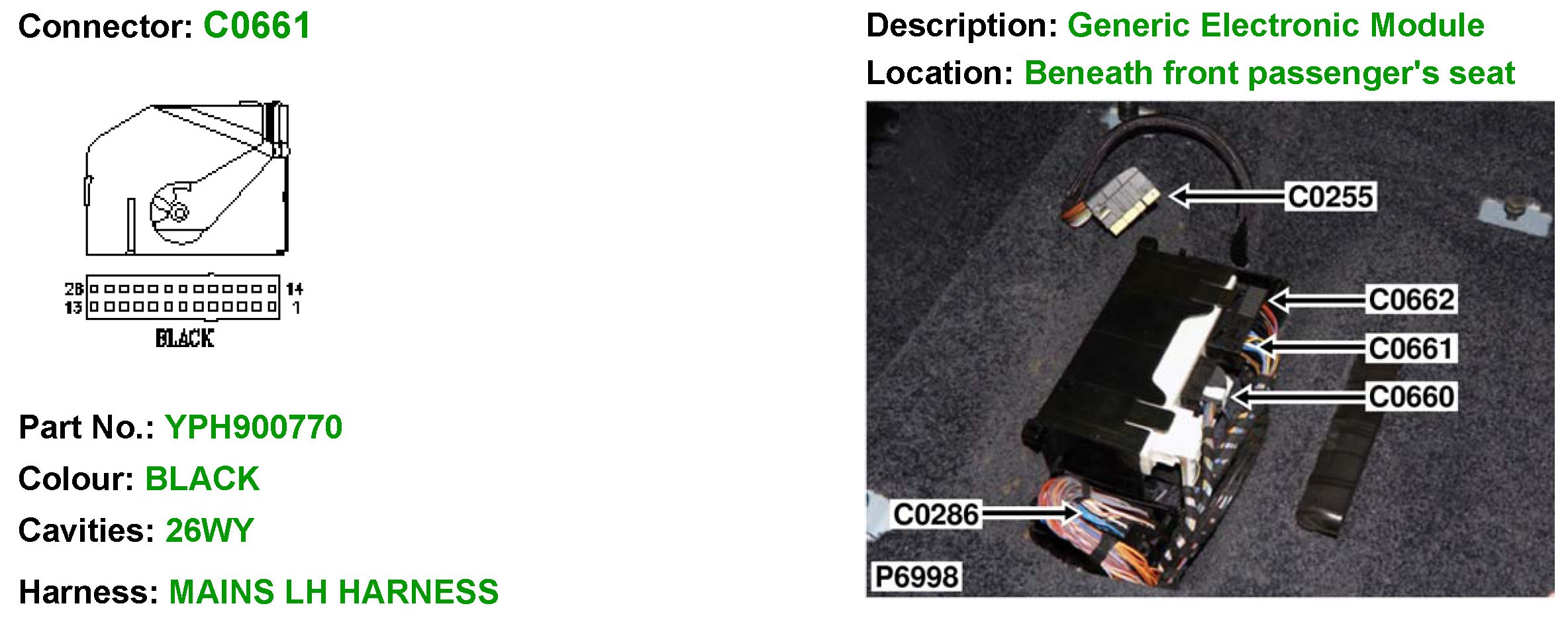

C0661

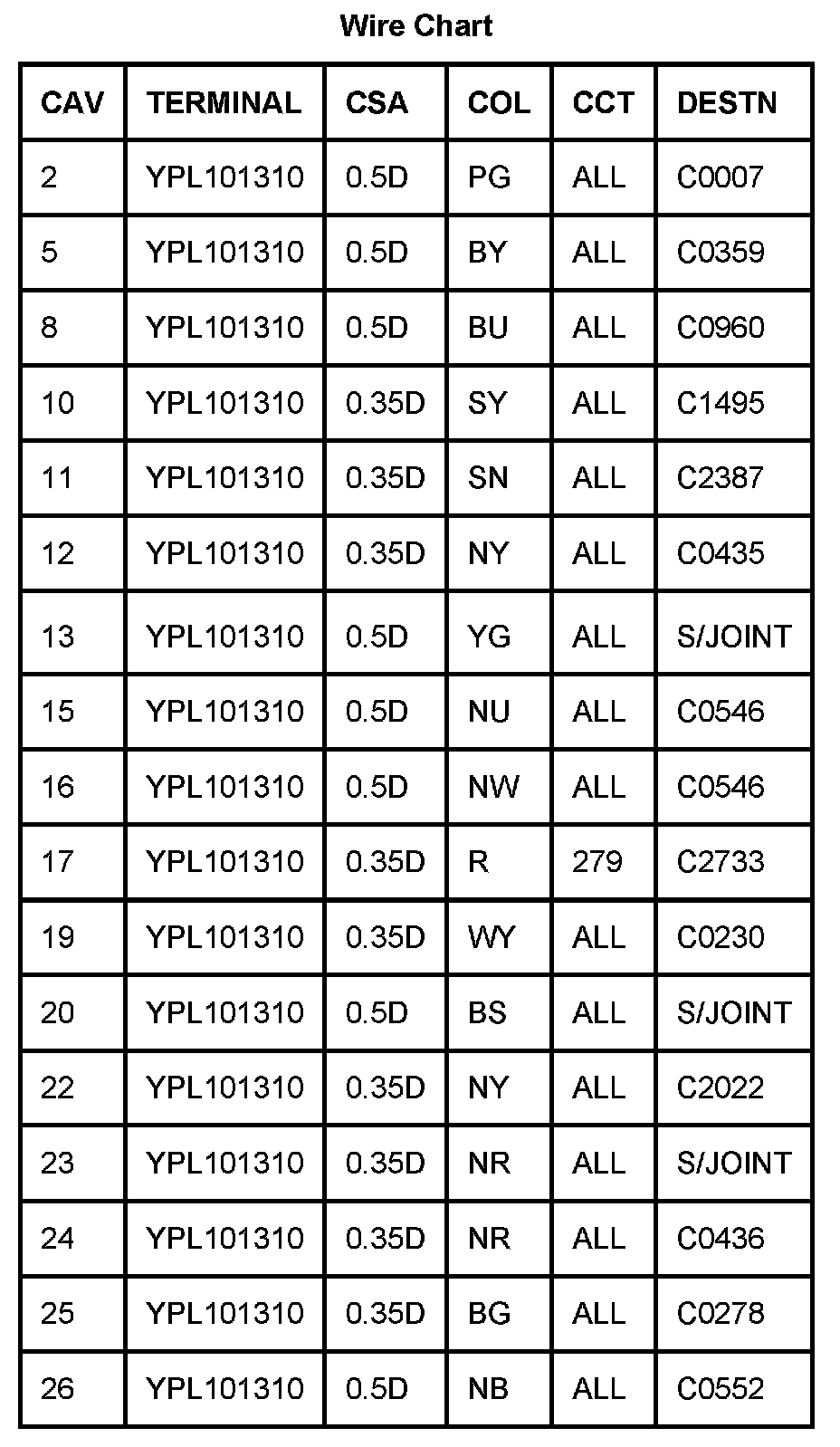

C0661 (Part 1):

C0661 (Part 2):
