Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0701 - C0800 >> C0708

C0708

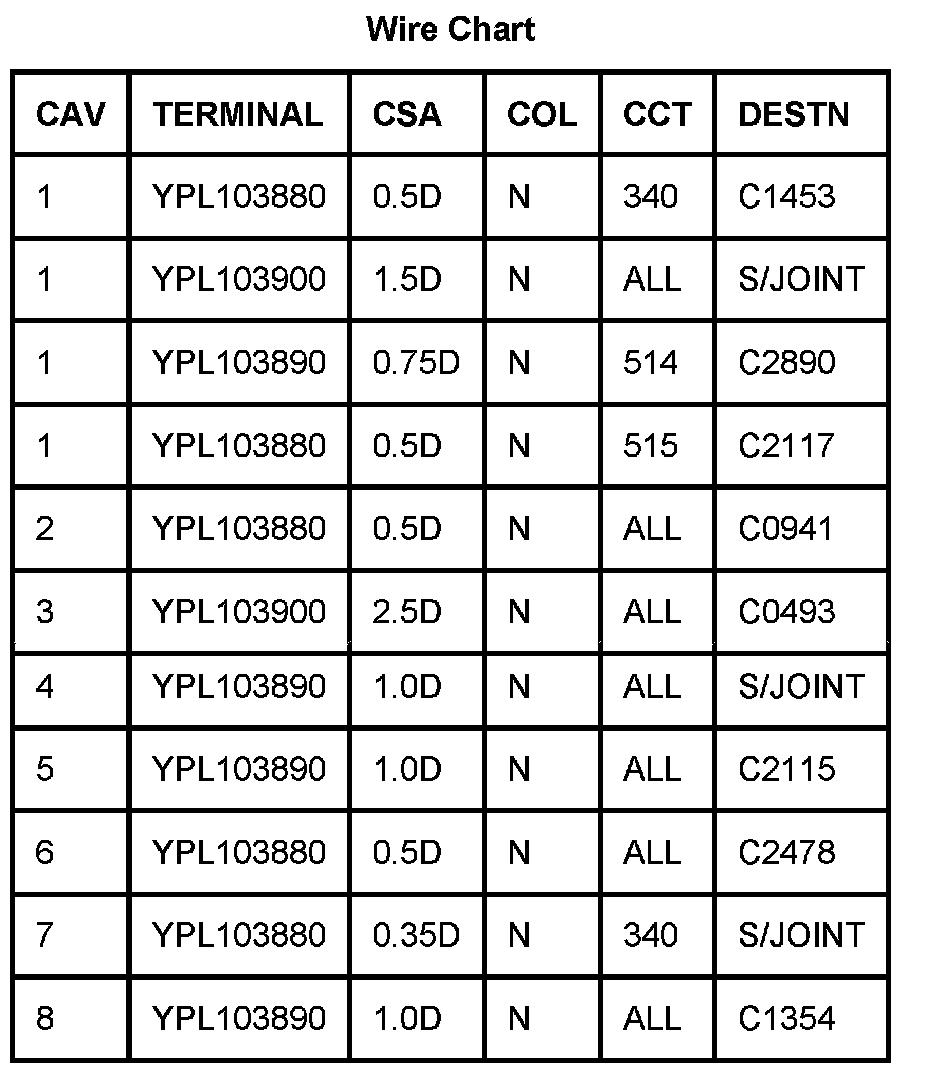

C0708 (Part 1):

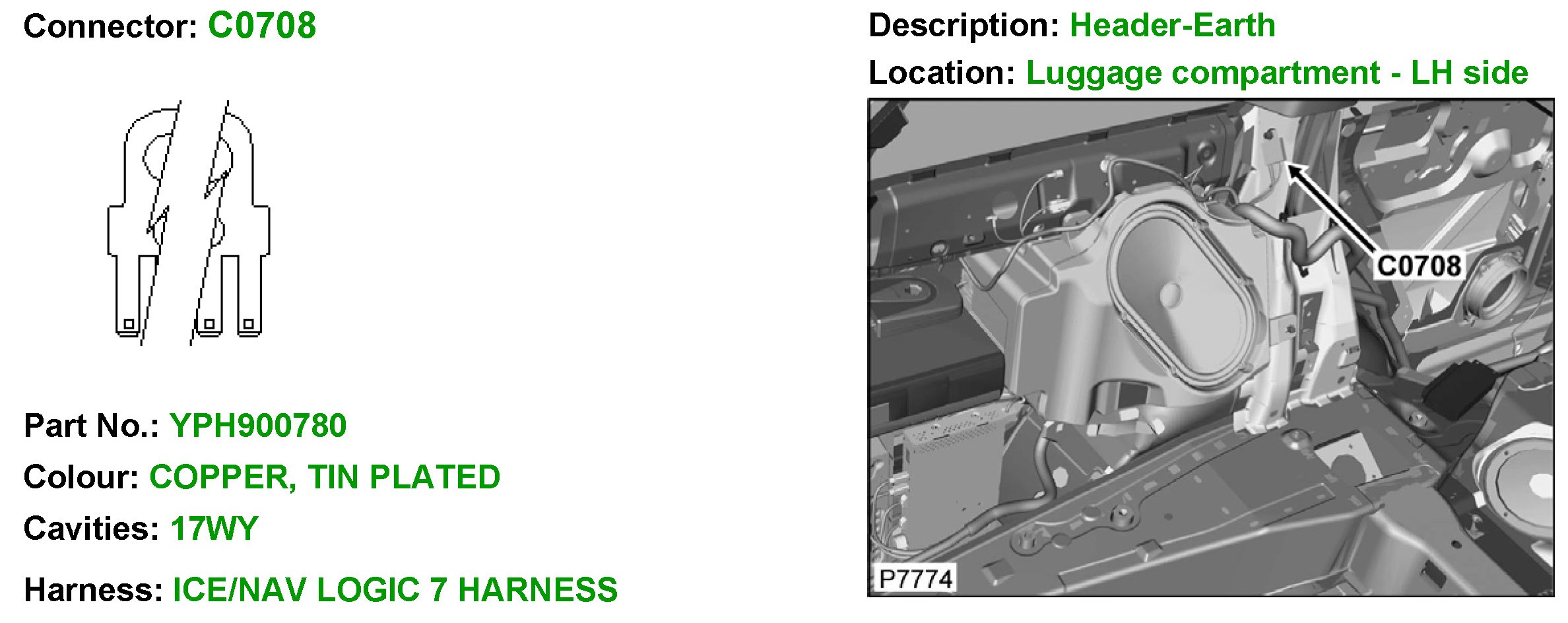

C0708 (Part 2):
