Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0901 - C1000 >> C0982

C0982

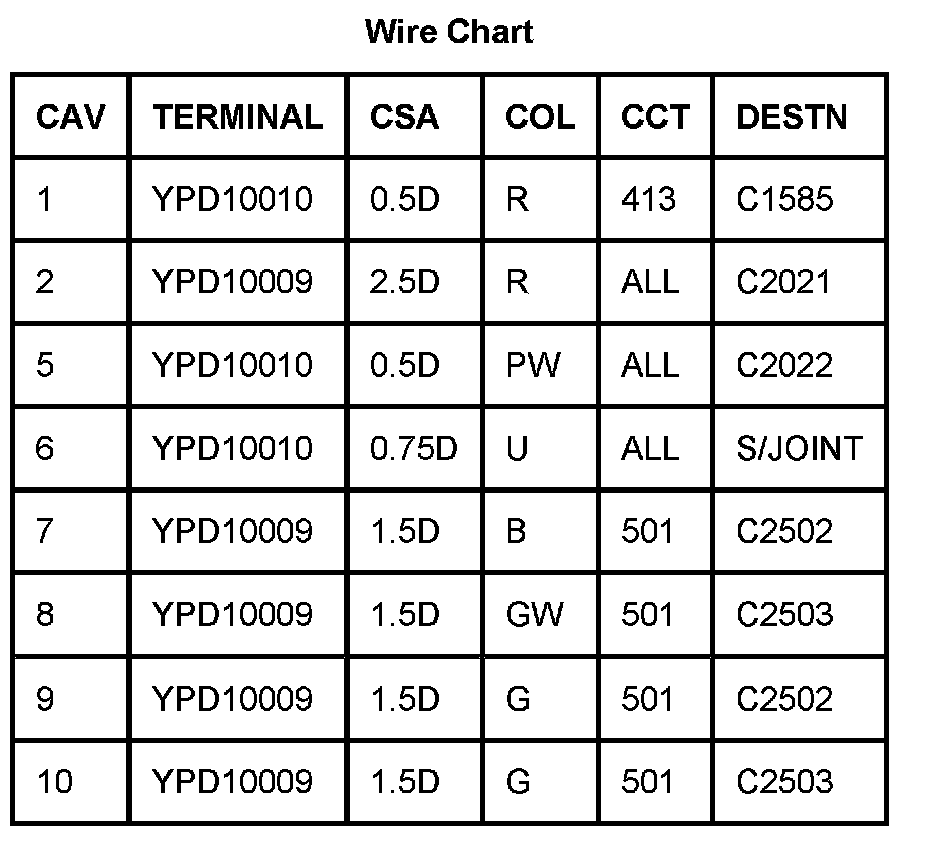

C0982 (Part 1):

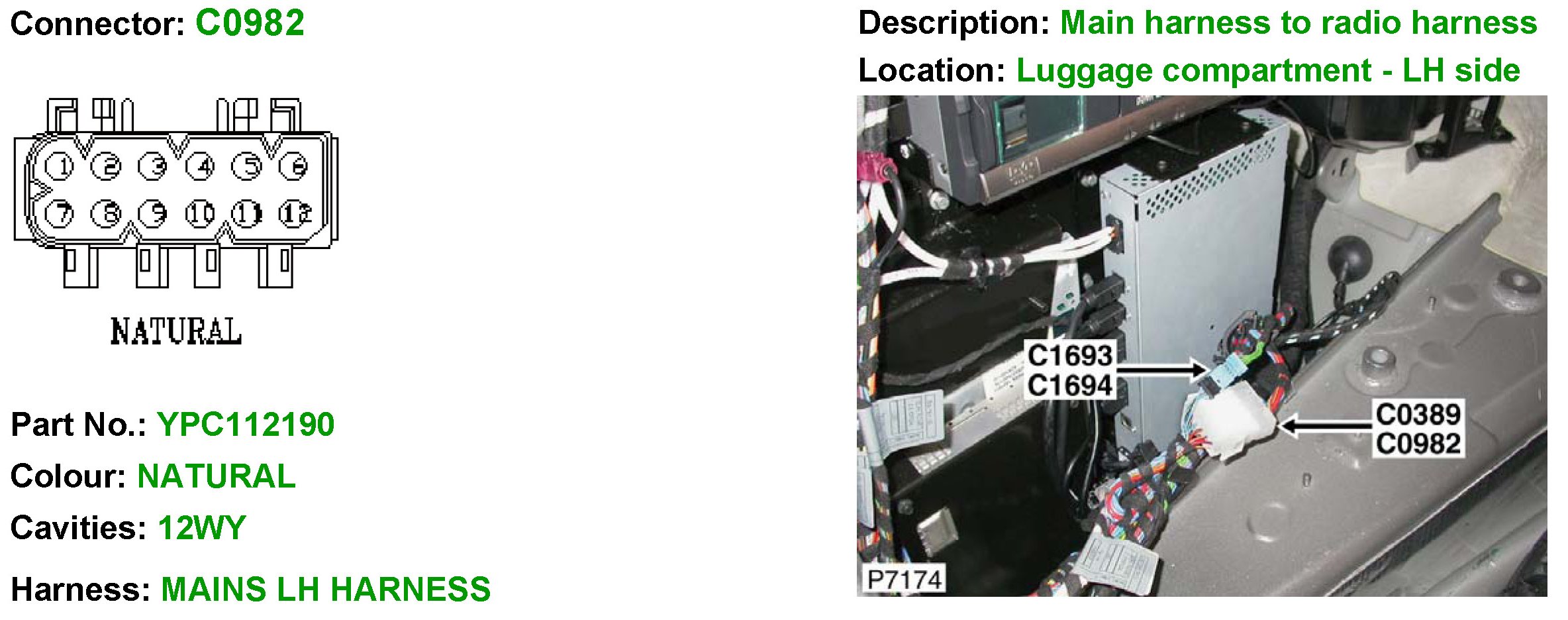

C0982 (Part 2):
