Operation CHARM: Car repair manuals for everyone.
Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C2001 - C2100 >> C2034

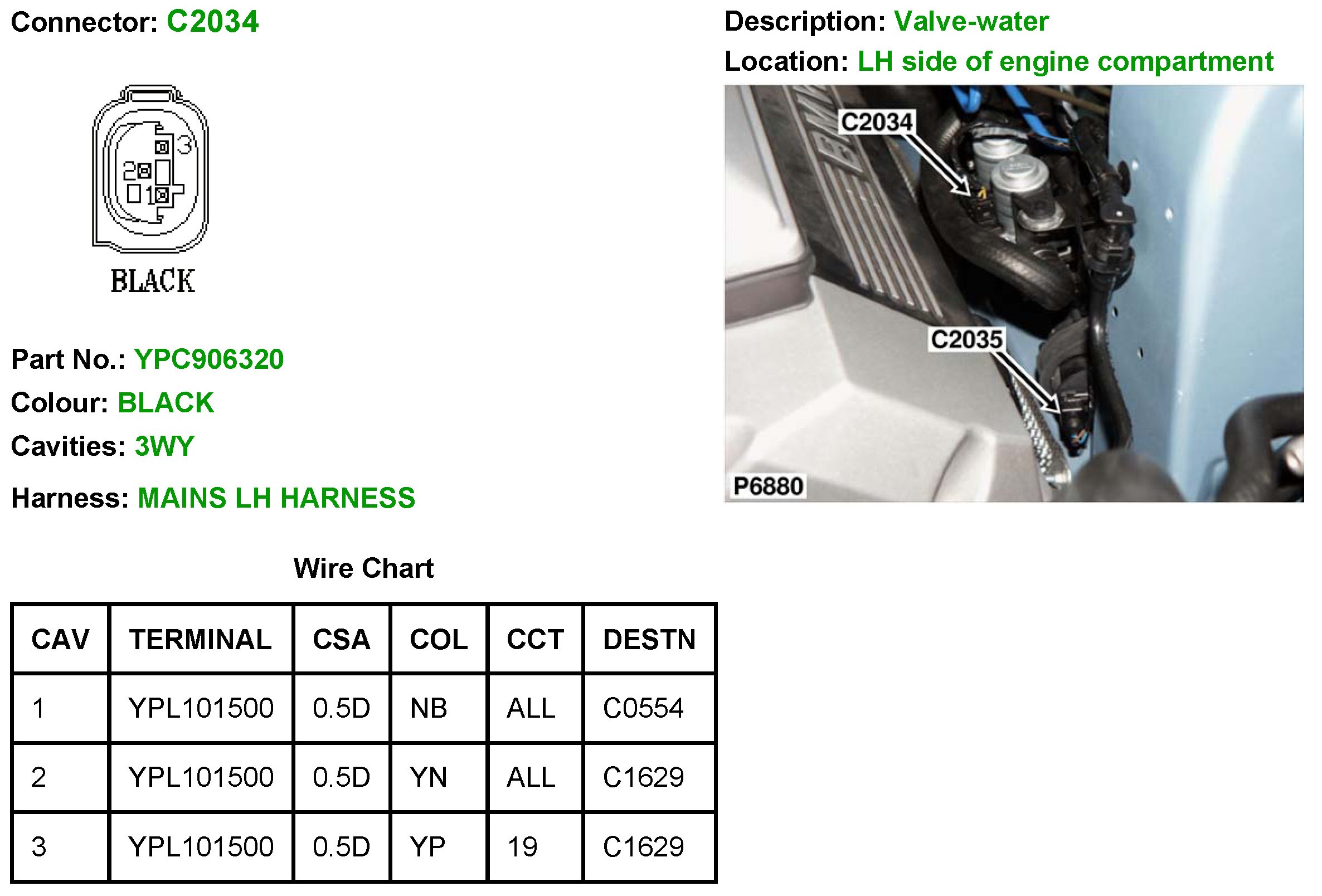

C2034

C2034:
