Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C2901 - C3000 >> C2946

C2946

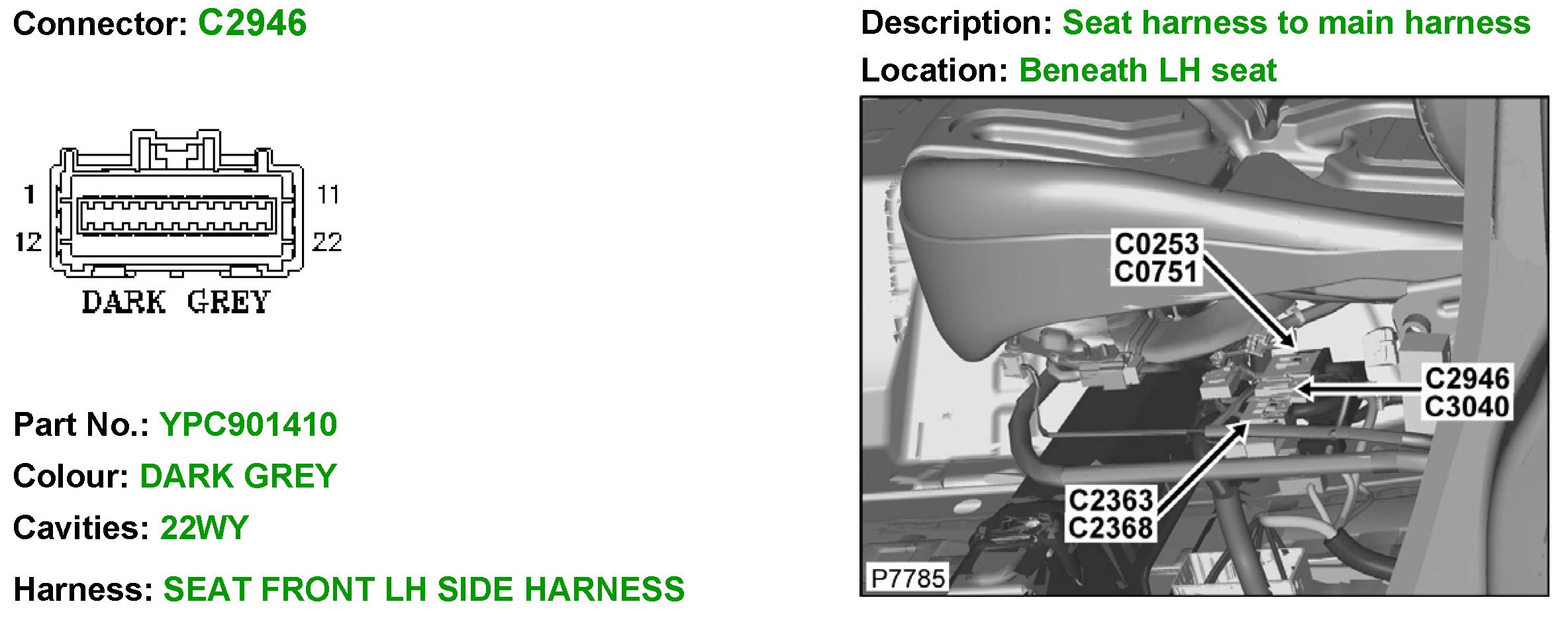

C2946 (Part 1):

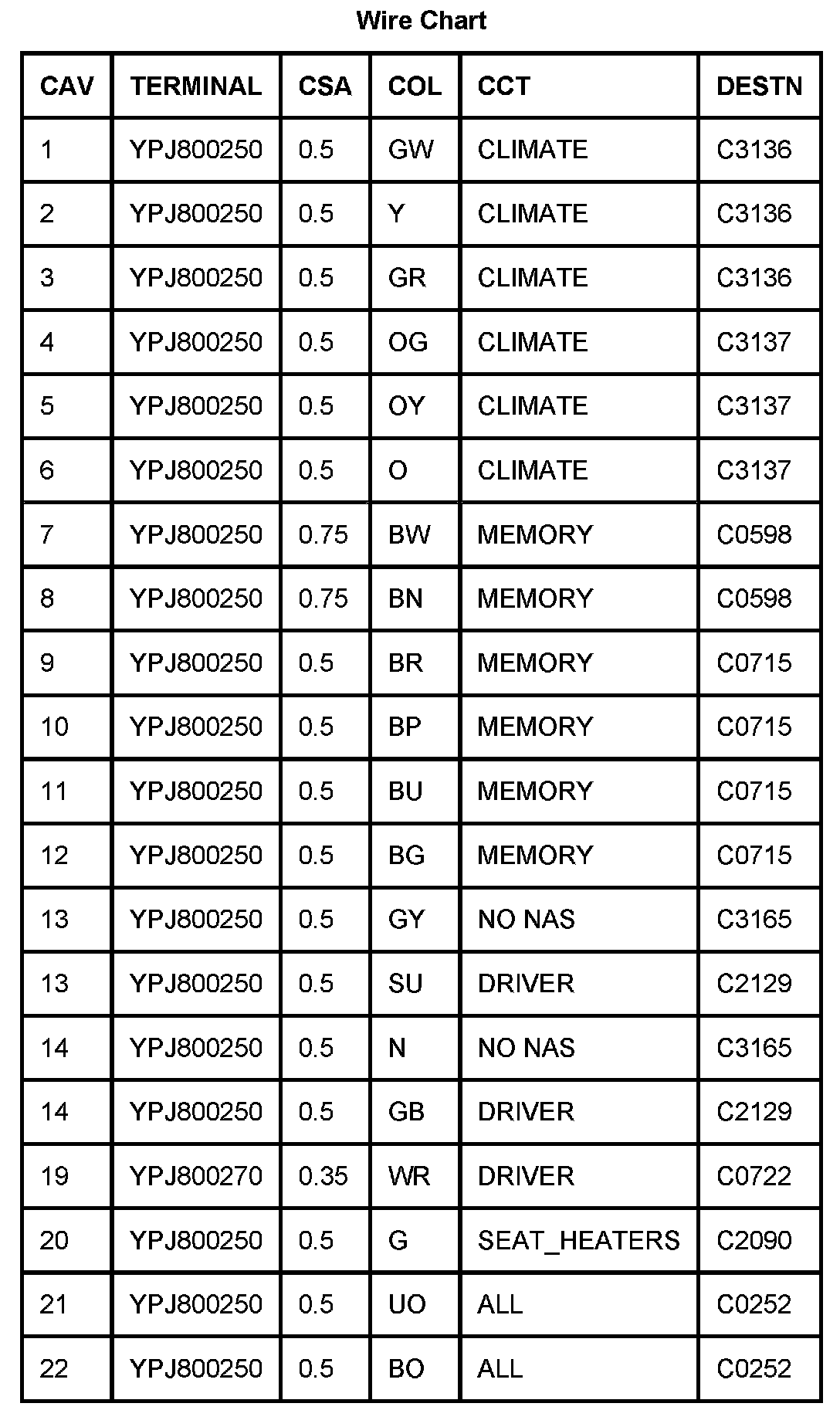

C2946 (Part 2):
