Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C3001 - C3100 >> C3013

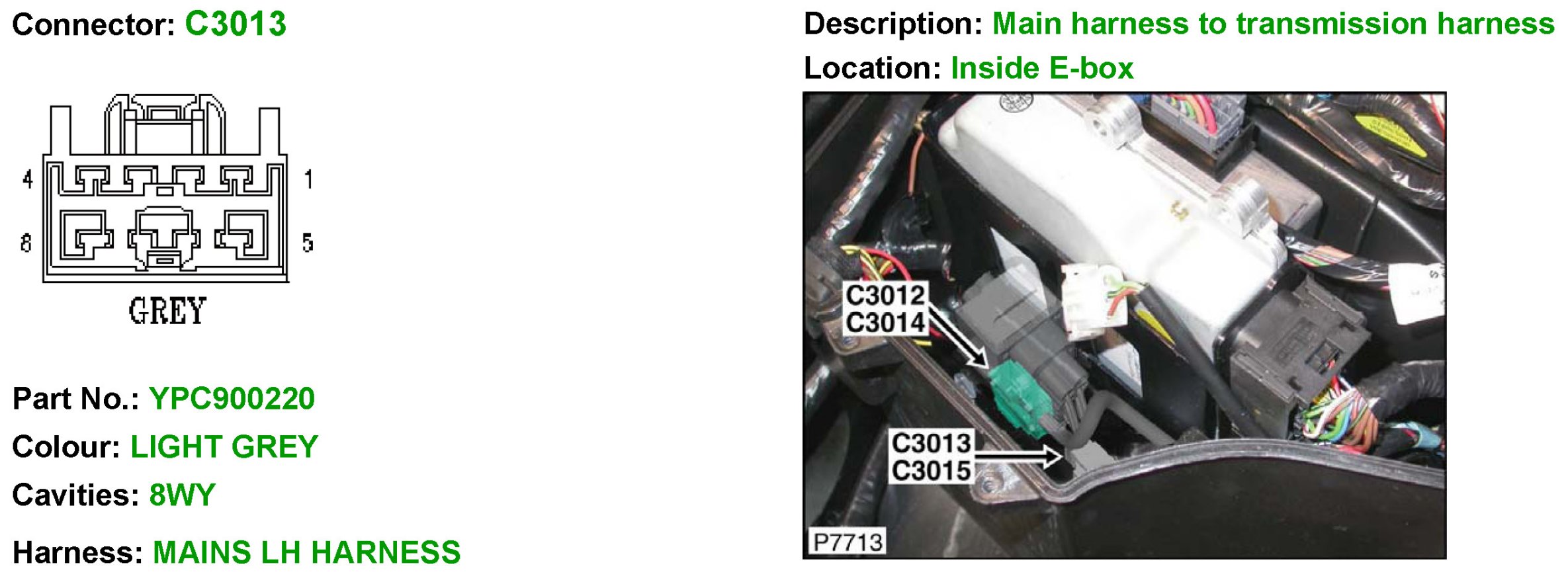

C3013

C3013 (Part 1):

C3013 (Part 2):
