Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C3201 - C3300 >> C3218

C3218

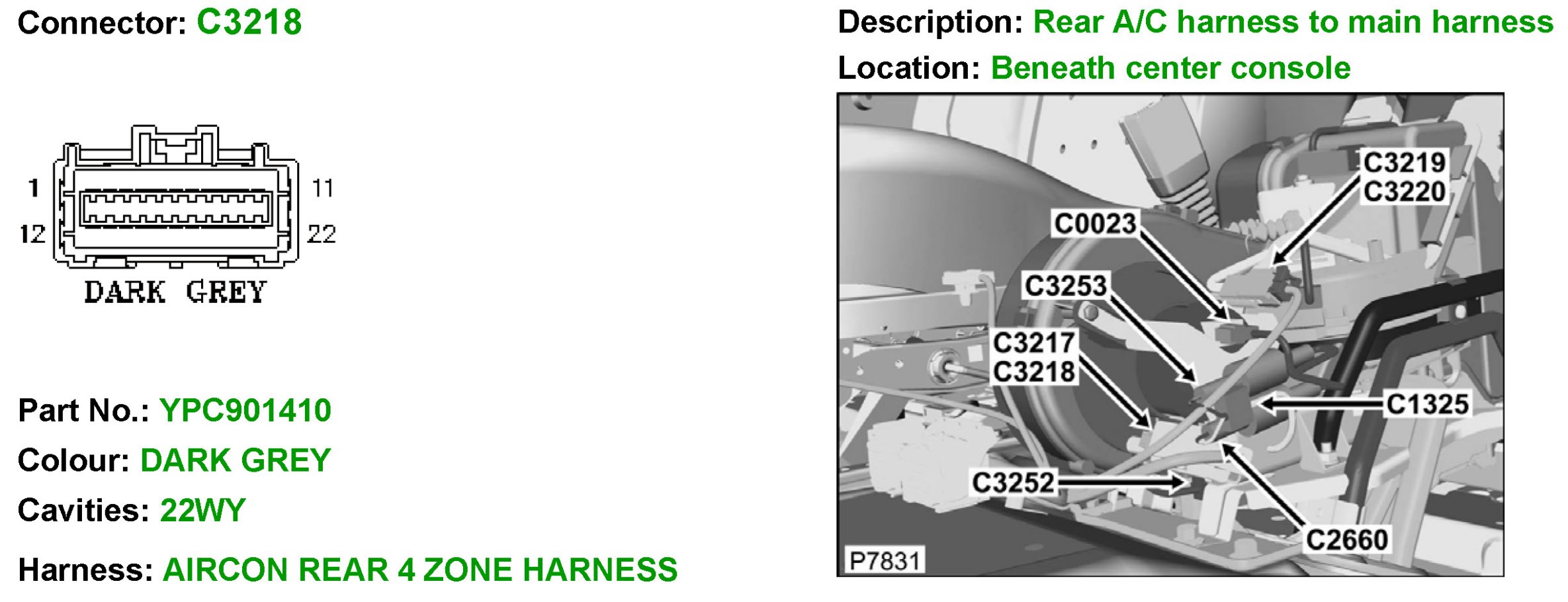

C3218 (Part 1):

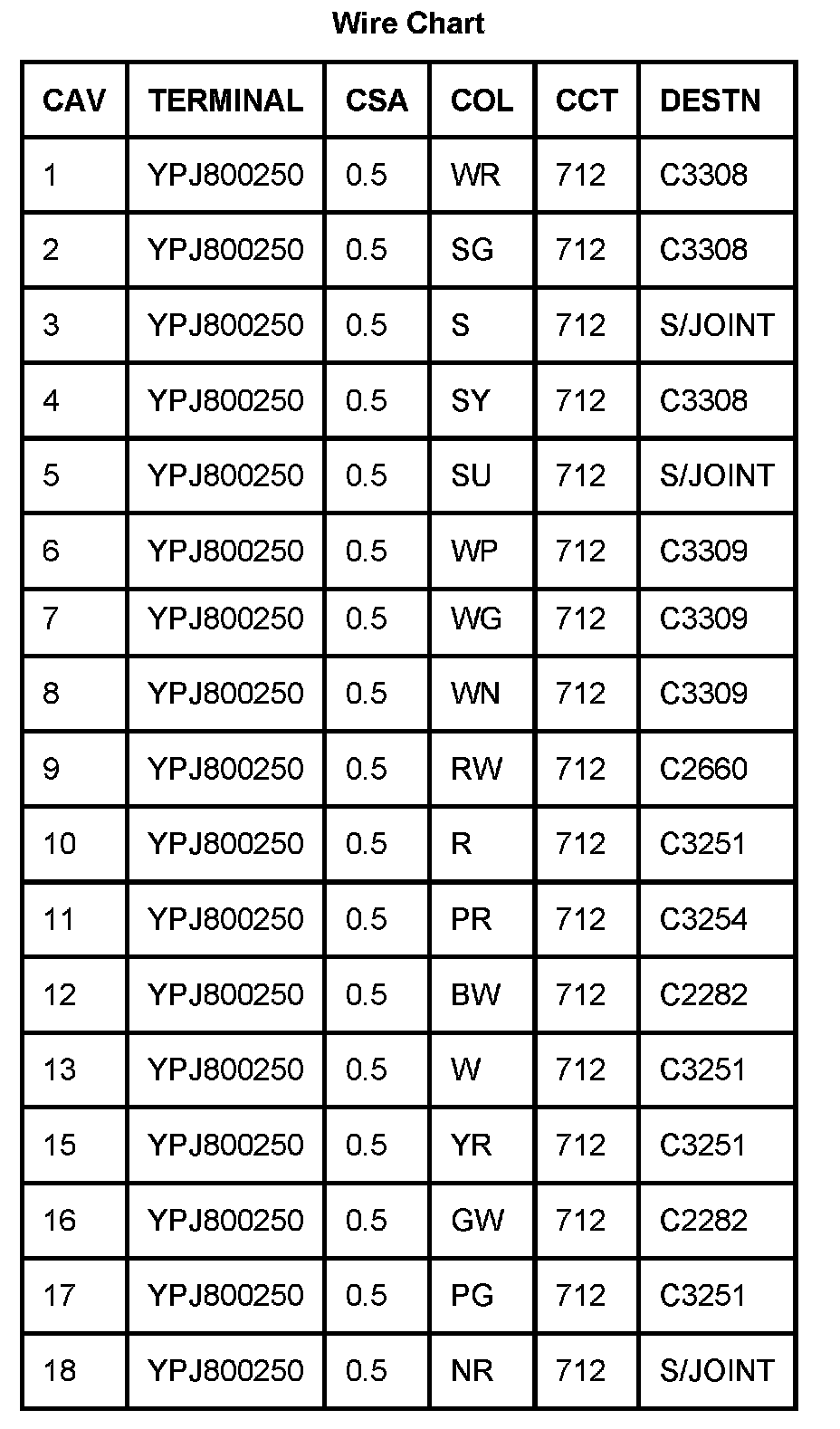

C3218 (Part 2):
