Operation CHARM: Car repair manuals for everyone.
Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C3201 - C3300 >> C3262

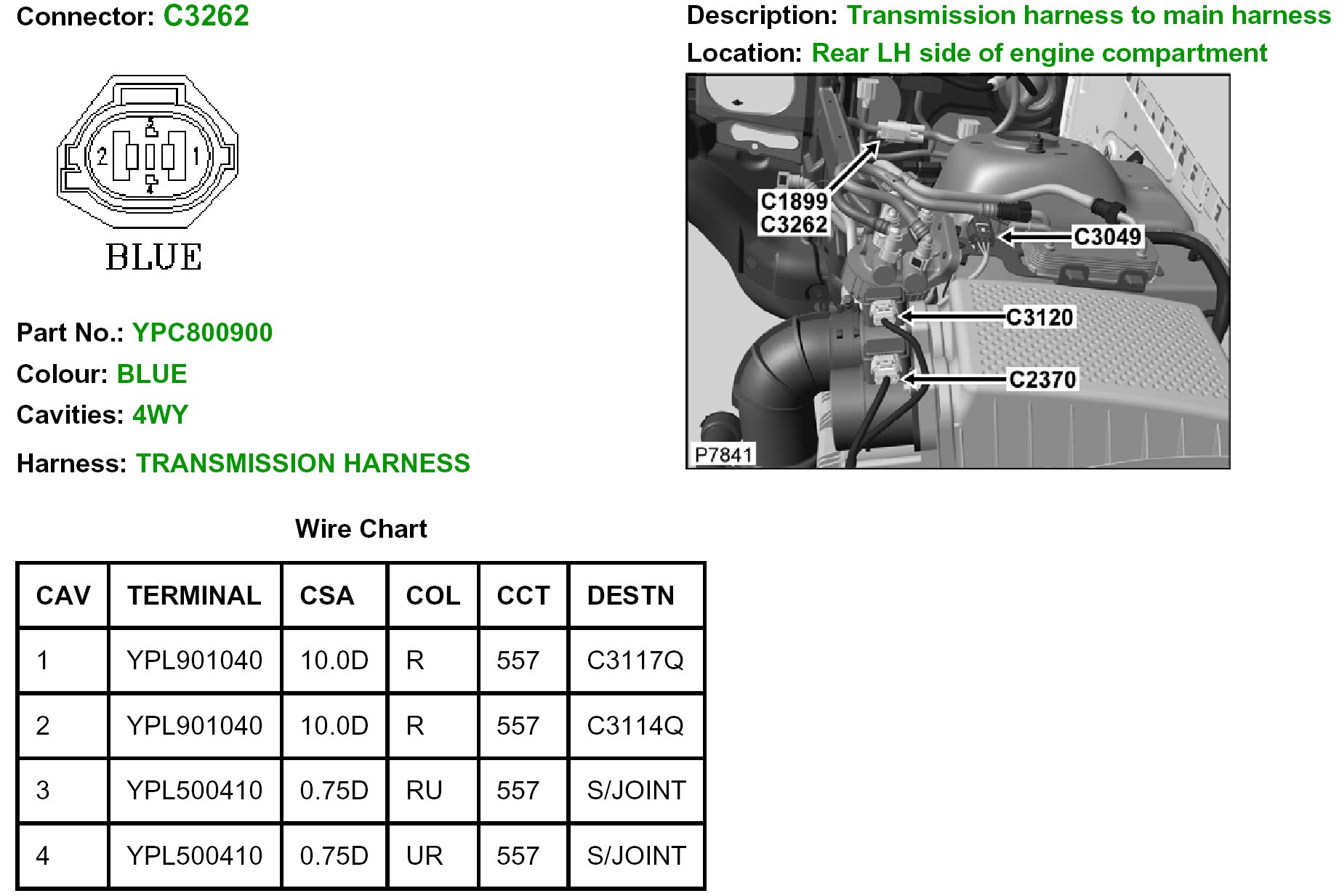

C3262

C3262:
