Exploded Views

Engine Cooling

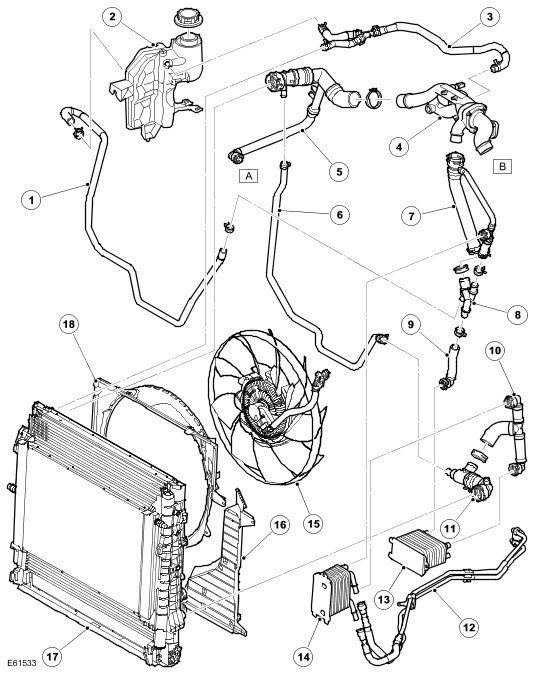

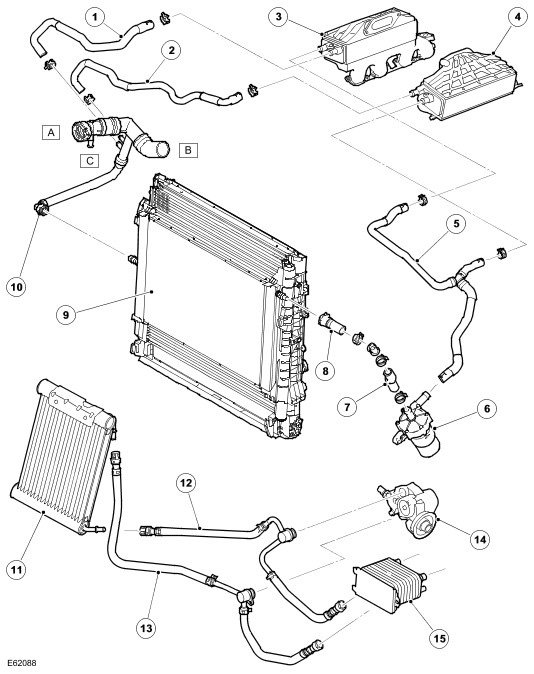

Cooling System Component Layout - Sheet 1 of 3 (Part 1):

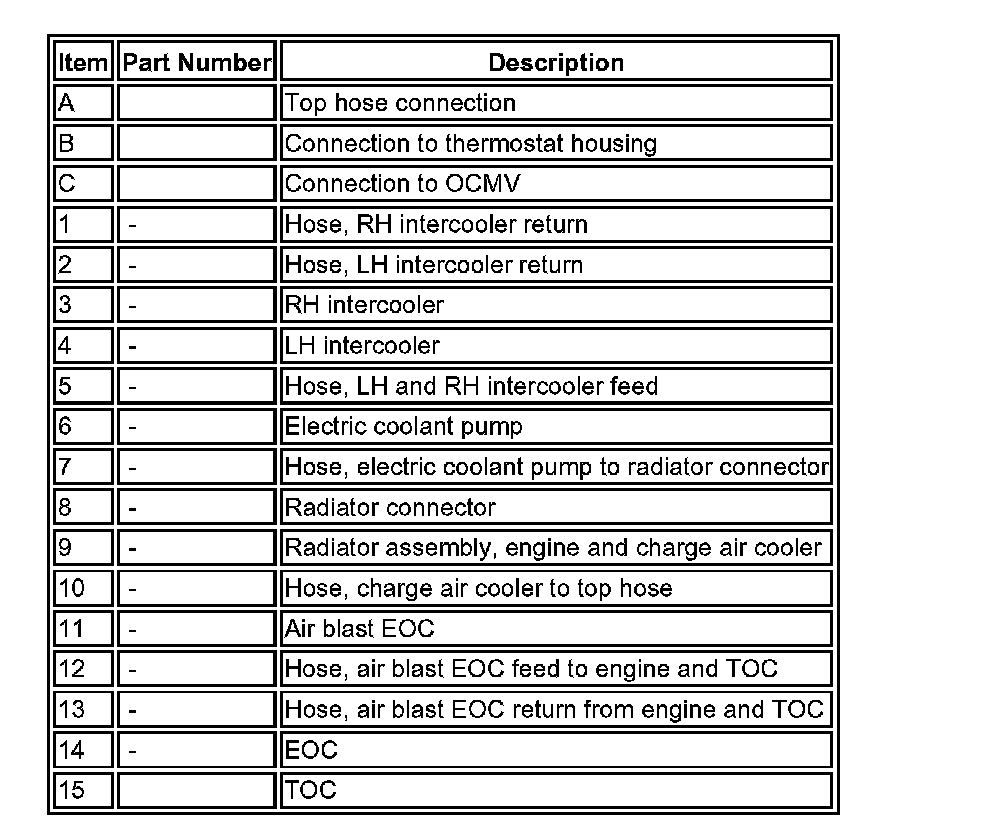

Cooling System Component Layout - Sheet 1 of 3 (Part 2):

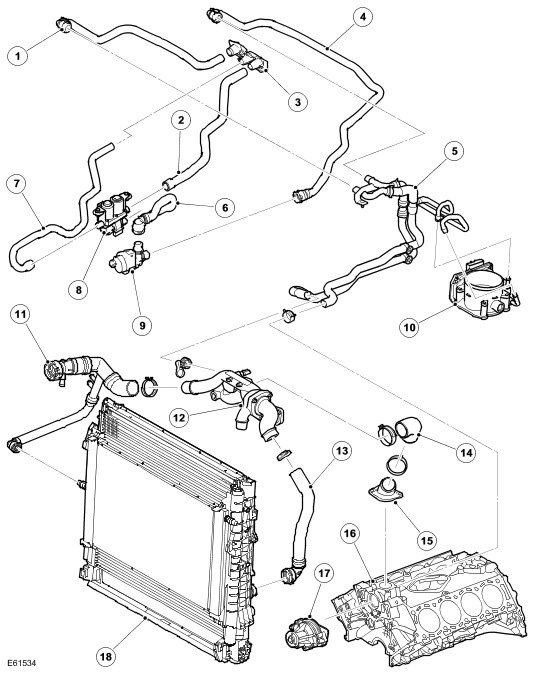

Cooling System Component Layout - Sheet 2 of 3 (Part 1):

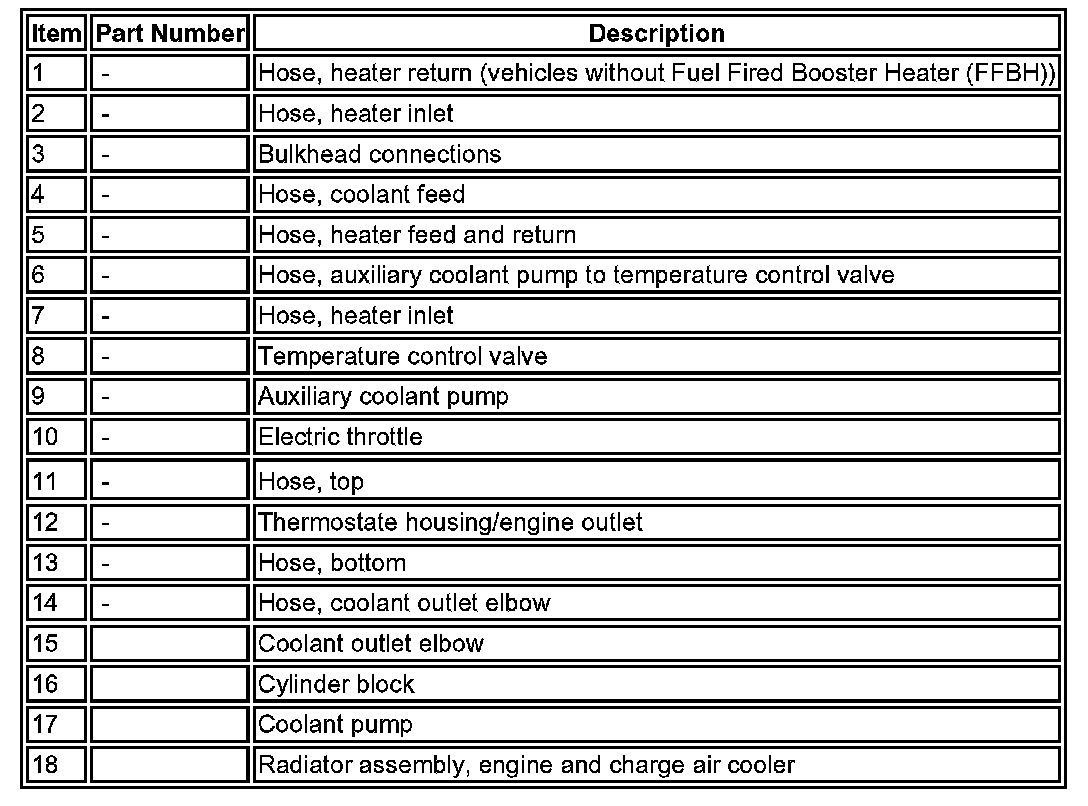

Cooling System Component Layout - Sheet 2 of 3 (Part 2):




Cooling System Component Layout - Sheet 3 of 3 (Part 1):




Cooling System Component Layout - Sheet 3 of 3 (Part 2):
