General

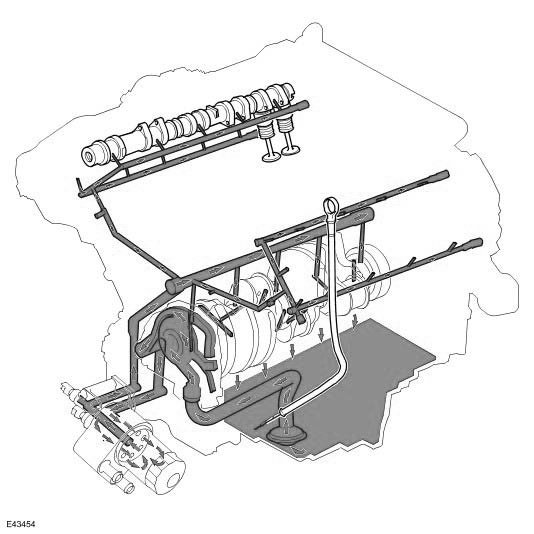

Oil is drawn from the reservoir in the oil pan and pressurized by the oil pump. The output from the oil pump is then filtered, cooled and distributed through internal oil passages.

All moving parts are lubricated by pressure or splash oil. Pressurized oil is also provided for the timing gear chain tensioners and the piston cooling jets.

The oil returns to the oil pan under gravity. Large drain holes through the cylinder heads and cylinder block ensure the quick return of the oil, reducing the volume of oil required and enabling an accurate check of the contents soon after the engine stops.

System replenishment is through the oil filler cap on the LH camshaft cover.

Oil Pick-up

Oil Pick-up:

The fabricated steel oil pick-up is immersed in the oil reservoir to provide a supply to the oil pump during all normal vehicle attitudes. A mesh screen in the inlet prevents debris from entering the oil system.

Oil Pump

Oil Pump:

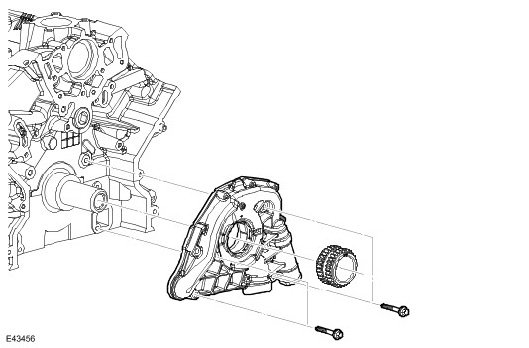

The oil pump is installed on the crankshaft at the front of the engine. The pump outlet port aligns with oil passages in the bedplate.

The pumping element is an eccentric rotor, which is directly driven by flats on the crankshaft. An integral pressure relief valve regulates pump outlet pressure at 4.5 bar (65.25 psi).

Oil Filter Assembly

Oil Filter Assembly (Part 1):

Oil Filter Assembly (Part 2):

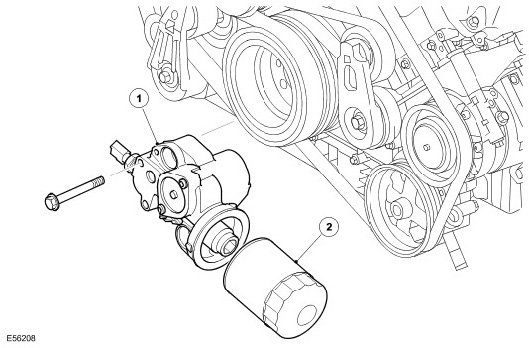

The oil filter is a replaceable cartridge installed on an adapter. An internal bypass facility permits full flow bypass if the filter is blocked.

The oil pressure switch connects a ground input to the instrument cluster when oil pressure is present. The switch operates at a pressure of 0.15 to 0.41 bar (2.2 to 5.9 psi).

Oil Level Gage

Oil Level Gage (Part 1):

Oil Level Gage (Part 2):

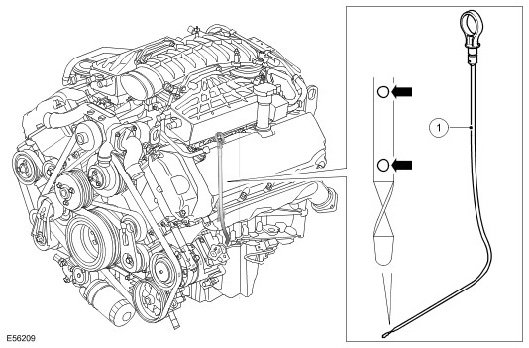

The oil level gage locates along the left side of the oil pan, supported in a tube installed in the sump. Two holes in the end of the gage indicate the minimum and maximum oil levels. There is a difference of approximately 1.5 liters (1.58 US quart) between the two levels.
