Climate Control

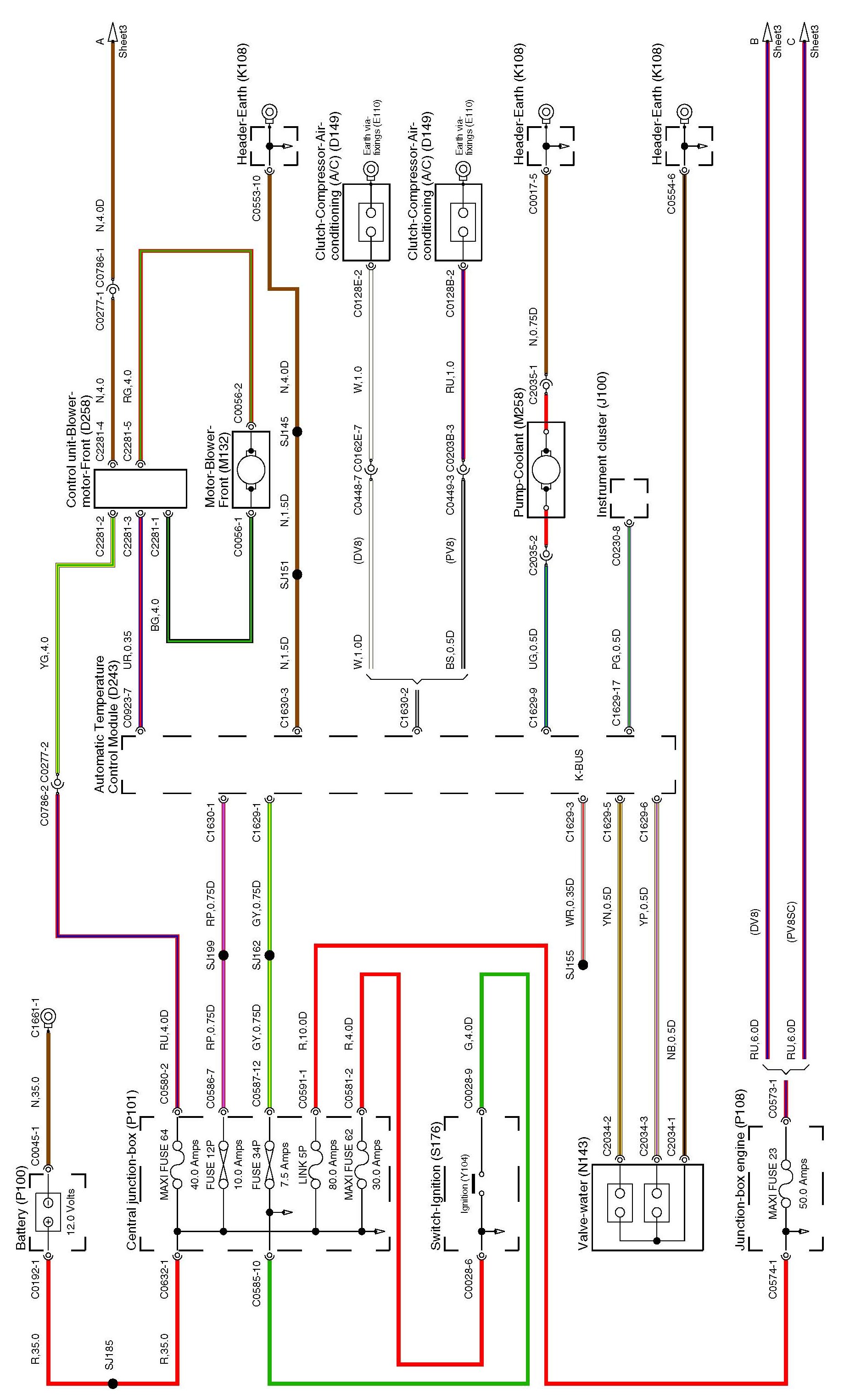

Climate Control (Front) (Sheet 1):

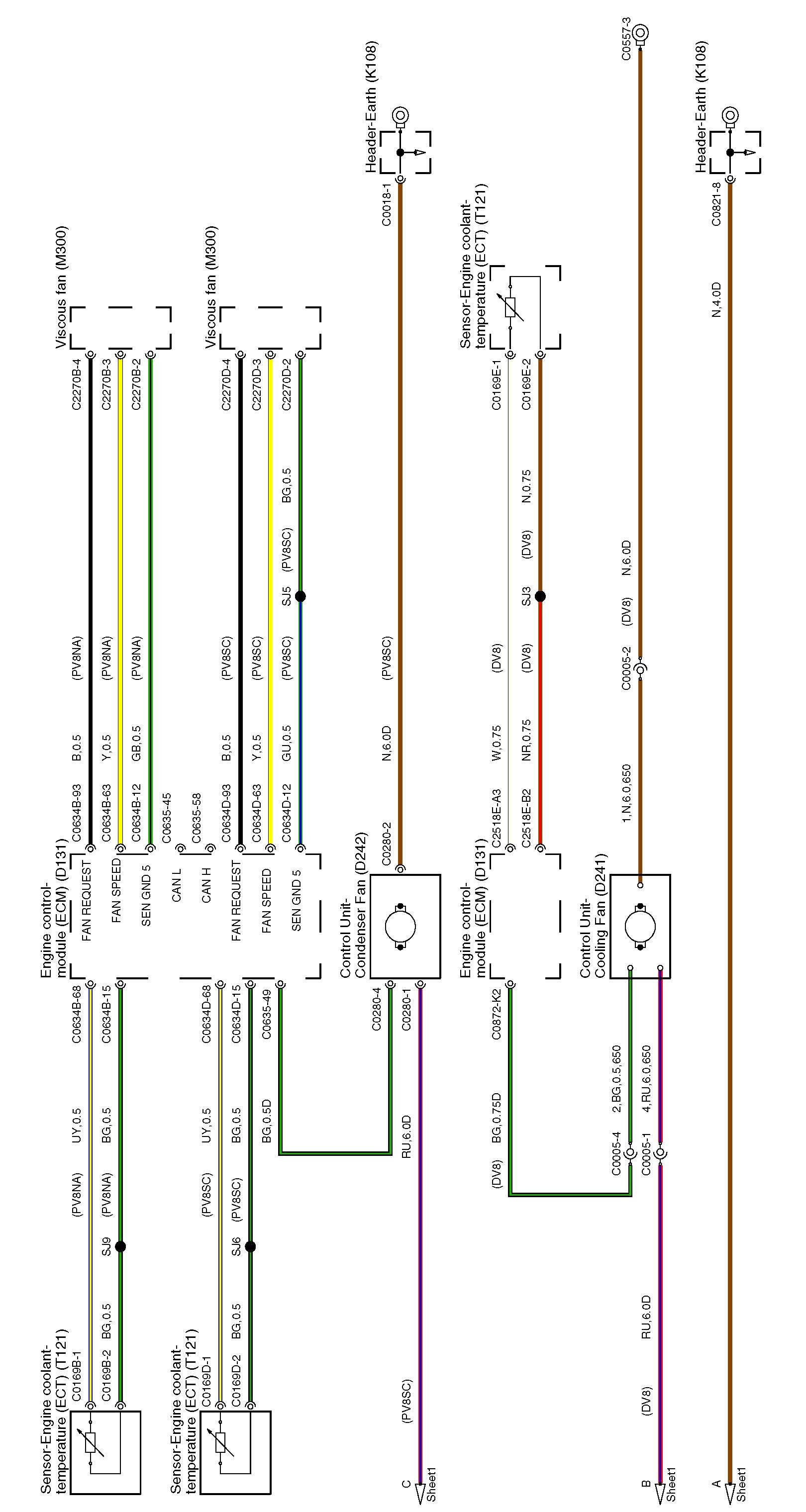

Climate Control (Front) (Sheet 2):

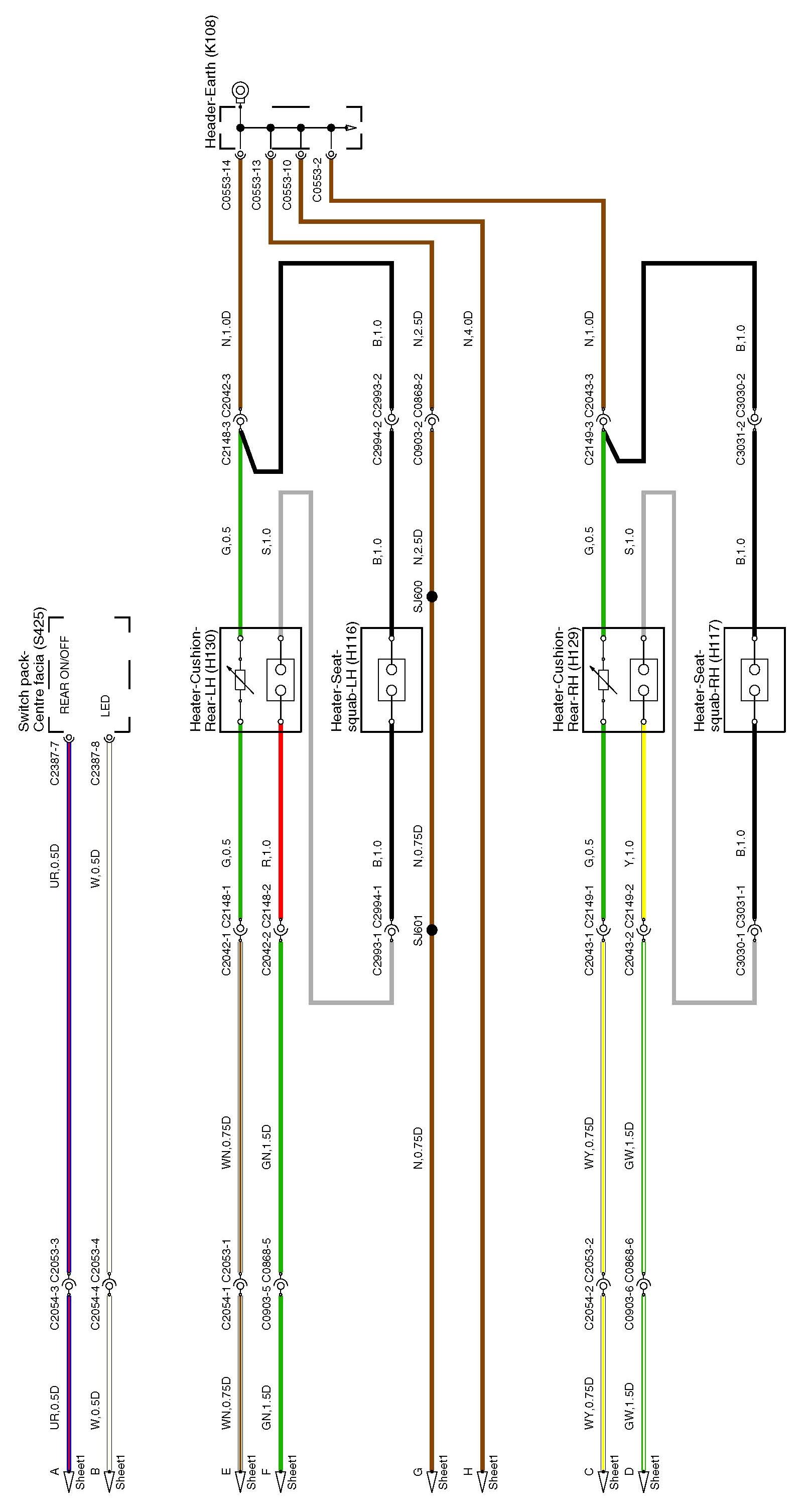

Climate Control (Front) (Sheet 3):

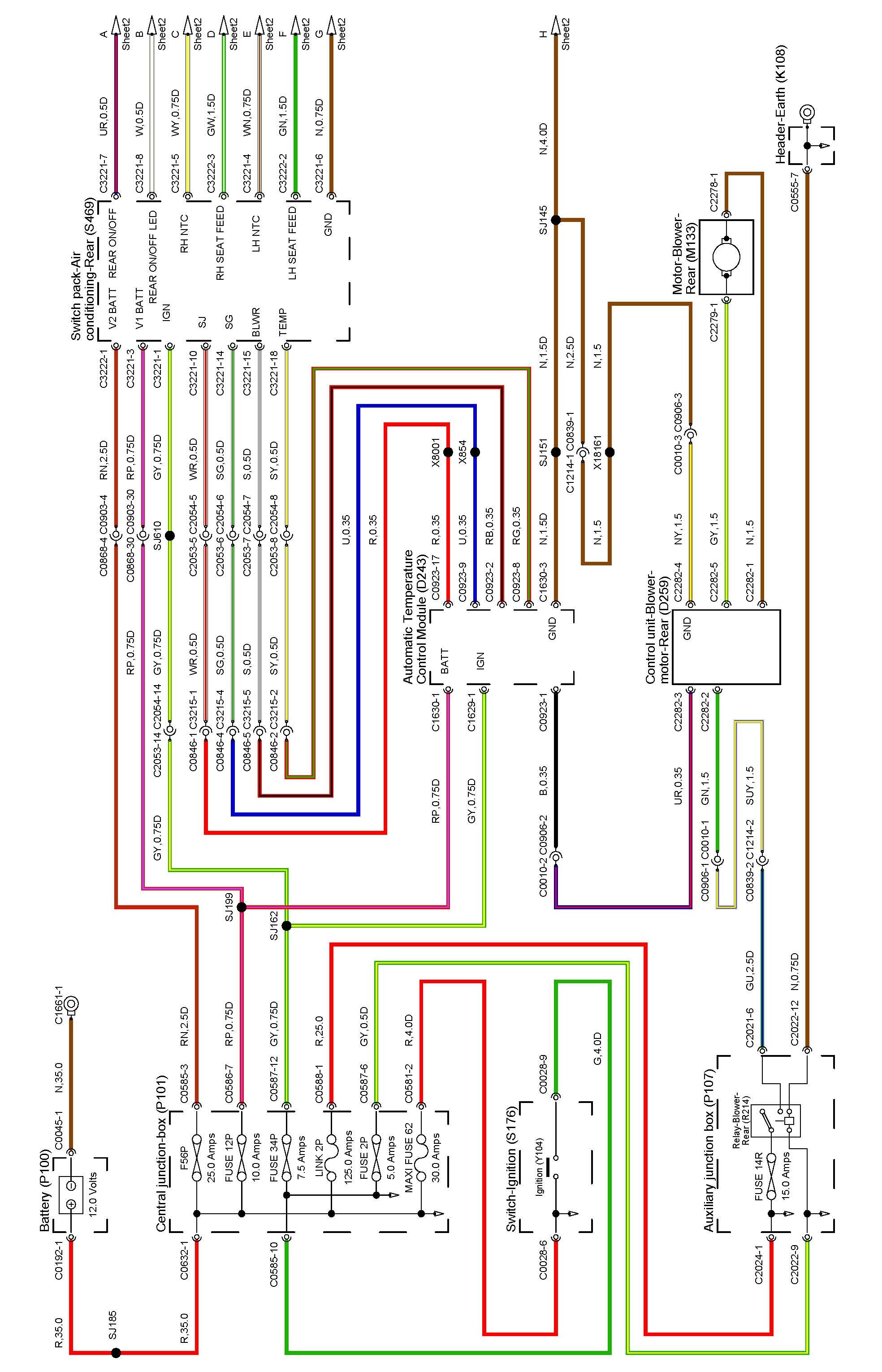

Rear - Three Rotary Controls (Sheet 1):

Rear - Three Rotary Controls (Sheet 2):

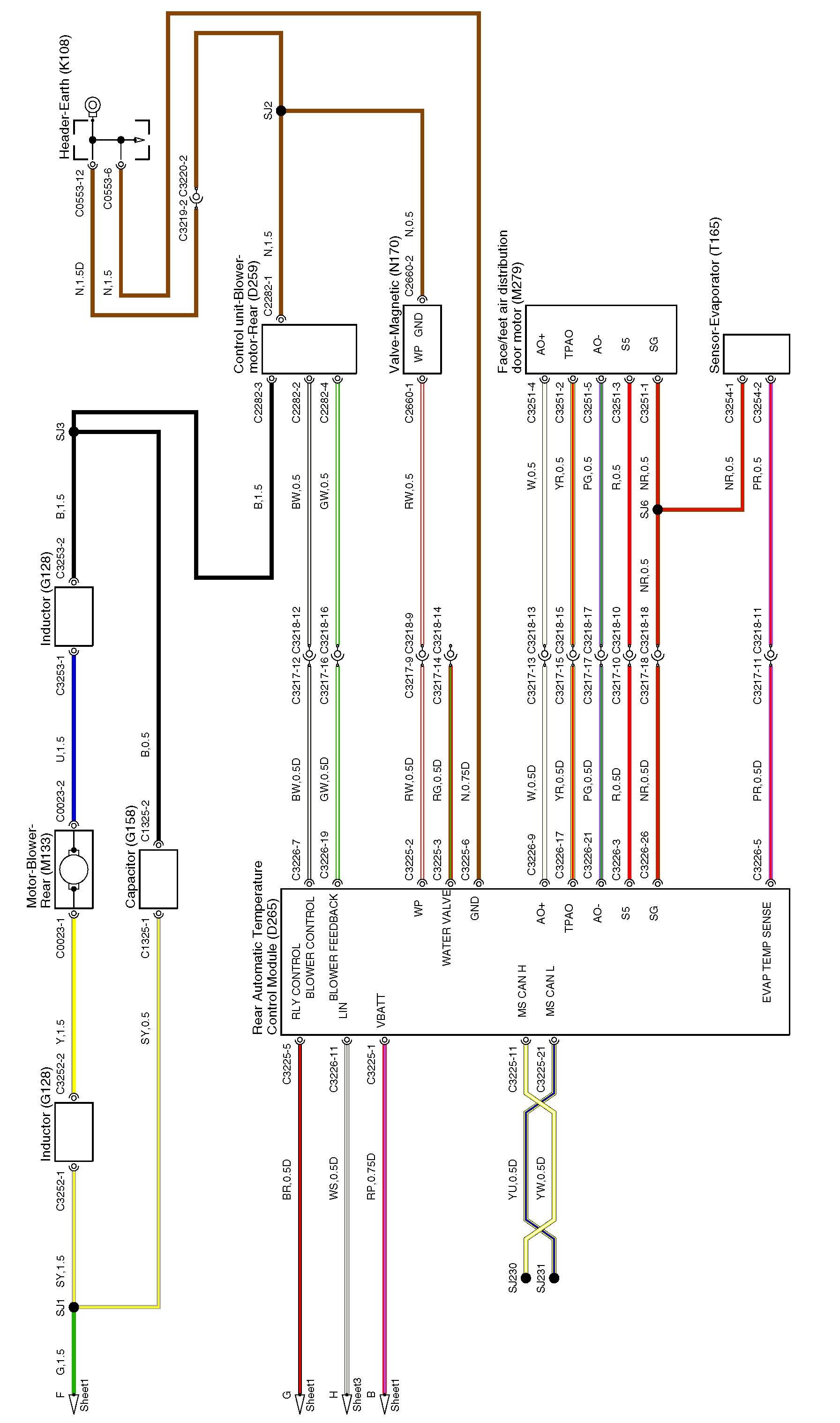

Rear - Three Rotary Controls (Sheet 3):

Rear - Three Rotary Controls (Sheet 4):

Rear - Two Rotary Controls (Sheet 1):

Rear - Two Rotary Controls (Sheet 2):

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
