Description

General

NOTE: The LED illumination of the front door pockets and the front and rear interior door handles is a function of the LCM and only operates when the light control switch is in the side lamp or headlamp positions.

The interior lighting is controlled by the GEM (generic electronic module) which is located below the front passenger seat. The interior lighting comprises the following lamps:
^ Front interior lamp unit
^ Rear interior lamp unit
^ Upper tail door load space lamps (2 off)
^ Luggage compartment load space lamp
^ Fascia mounted sill lamps (2 off)
^ Under fascia footwell lamps (2 off)
^ Door mirror approach lamps (2 off)
^ Puddle lamps (4 off).

The interior lamps have two modes of operation; automatic or manual. In the automatic mode the interior lamp functionality is controlled by the GEM on receipt of various input signals. In manual mode, the lamps can be switched on and off using the momentary button adjacent to the front interior lamp or can be disabled completely using the same switch.

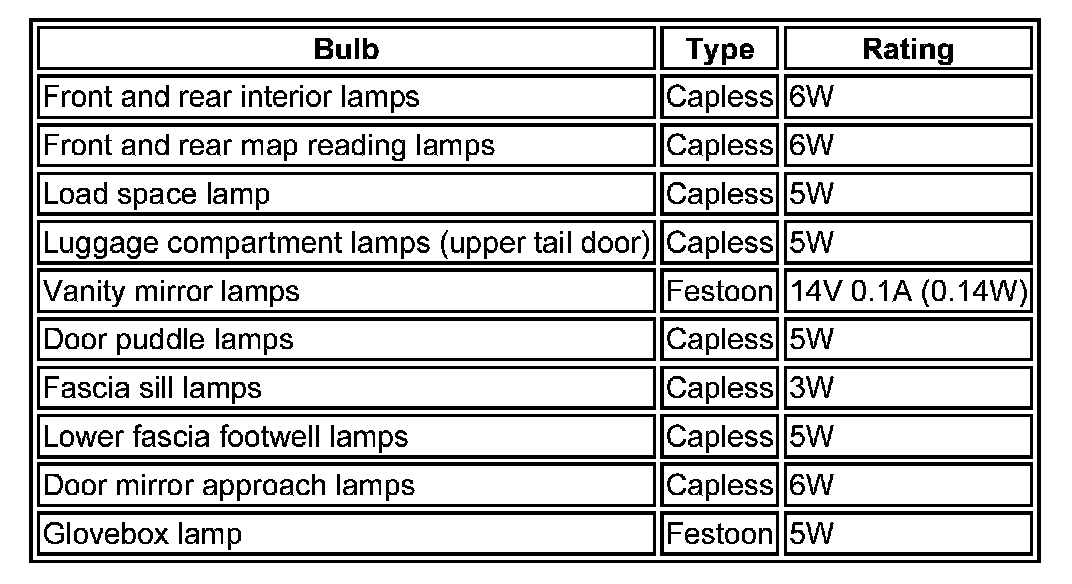

The following table shows the bulbs used for the interior lighting and their type and rating:
