Control Unit, Differential Lock
Control Unit, Differential Lock
C2162:
C2163 (Part 1):

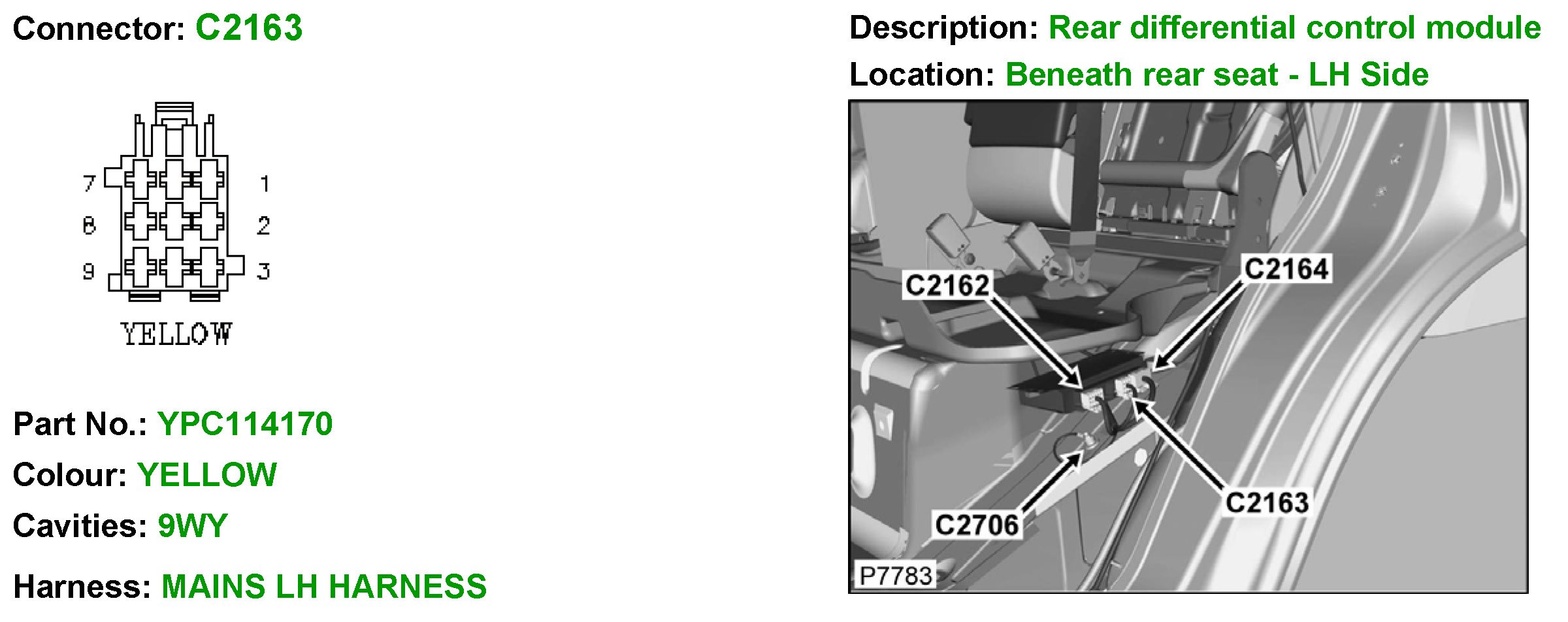

C2163 (Part 2):
C2164 (Part 1):
C2164 (Part 2):
