Suspension Control Module
Suspension Control Module

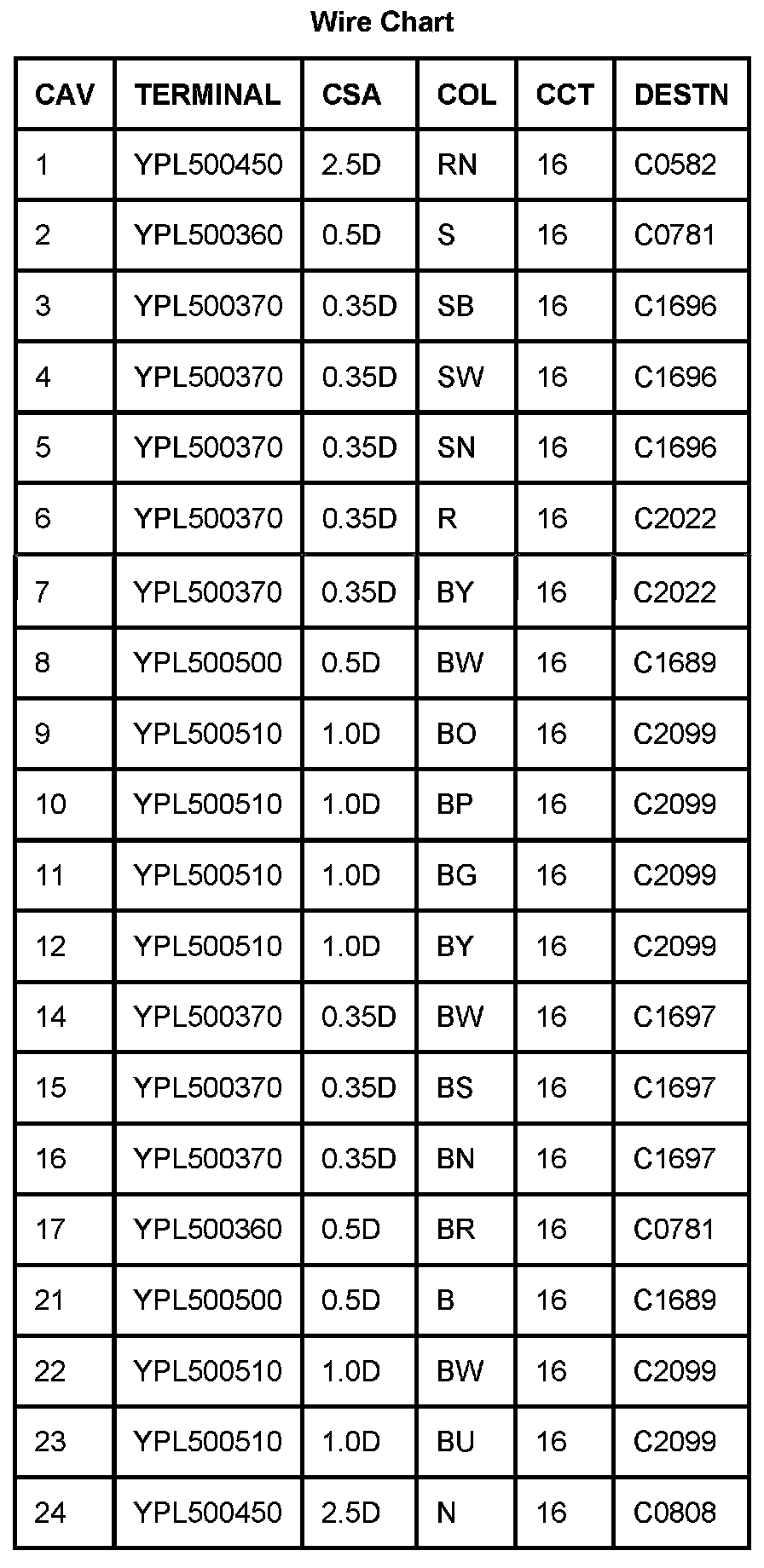

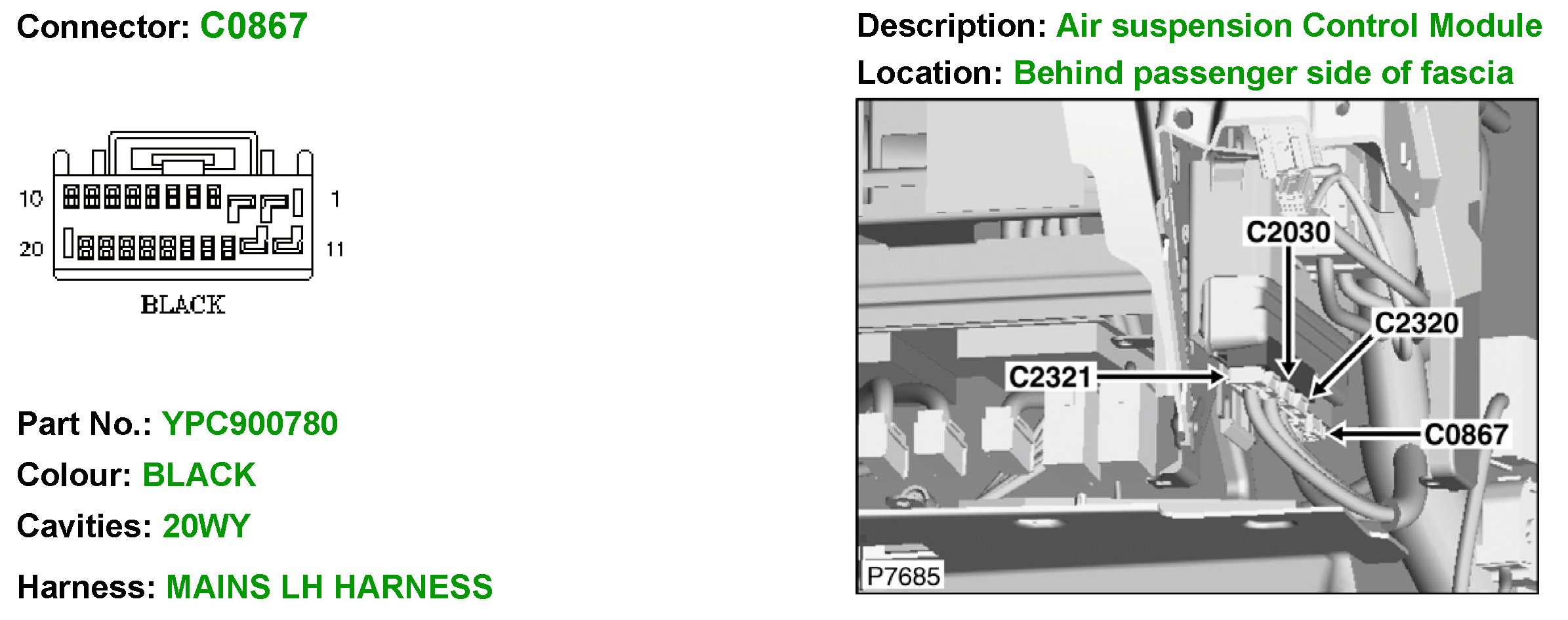

C0867 (Part 1):
C0867 (Part 2):

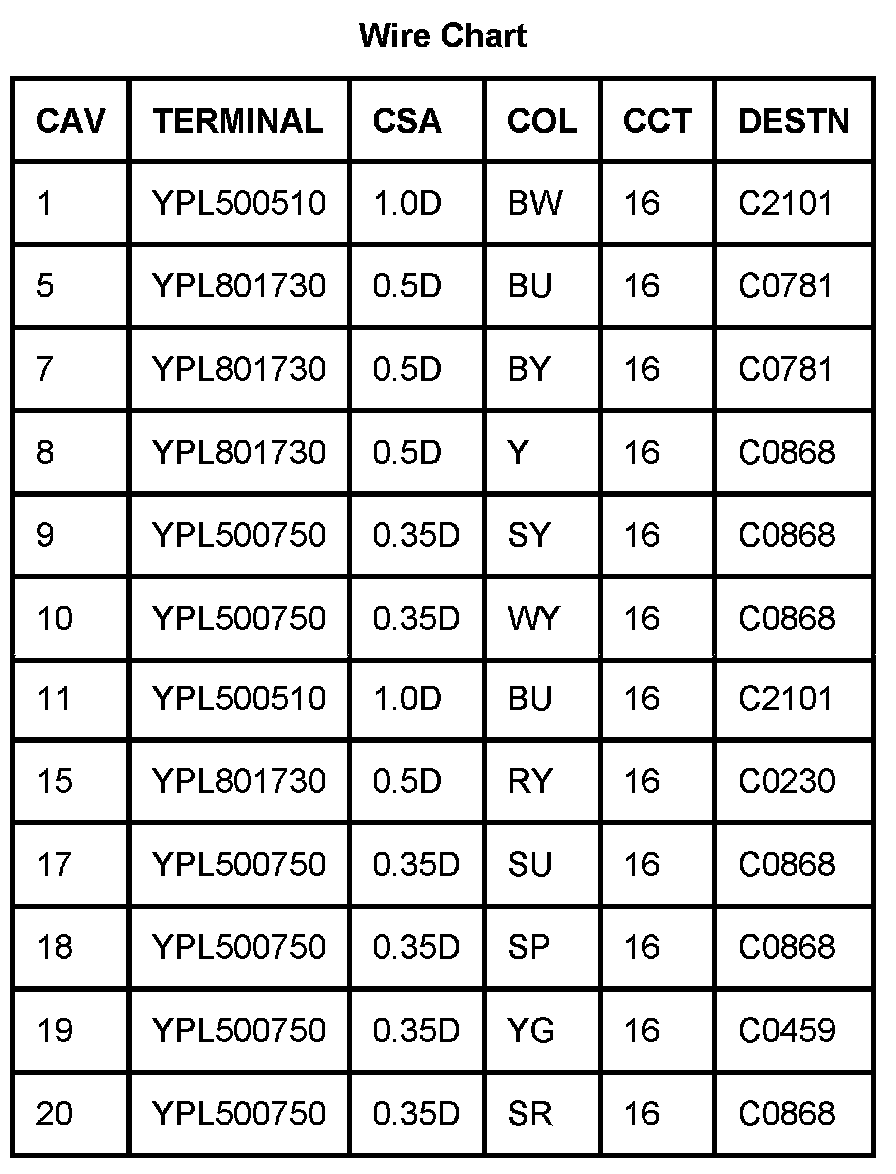

C2030 (Part 1):
C2030 (Part 1):
C2320:

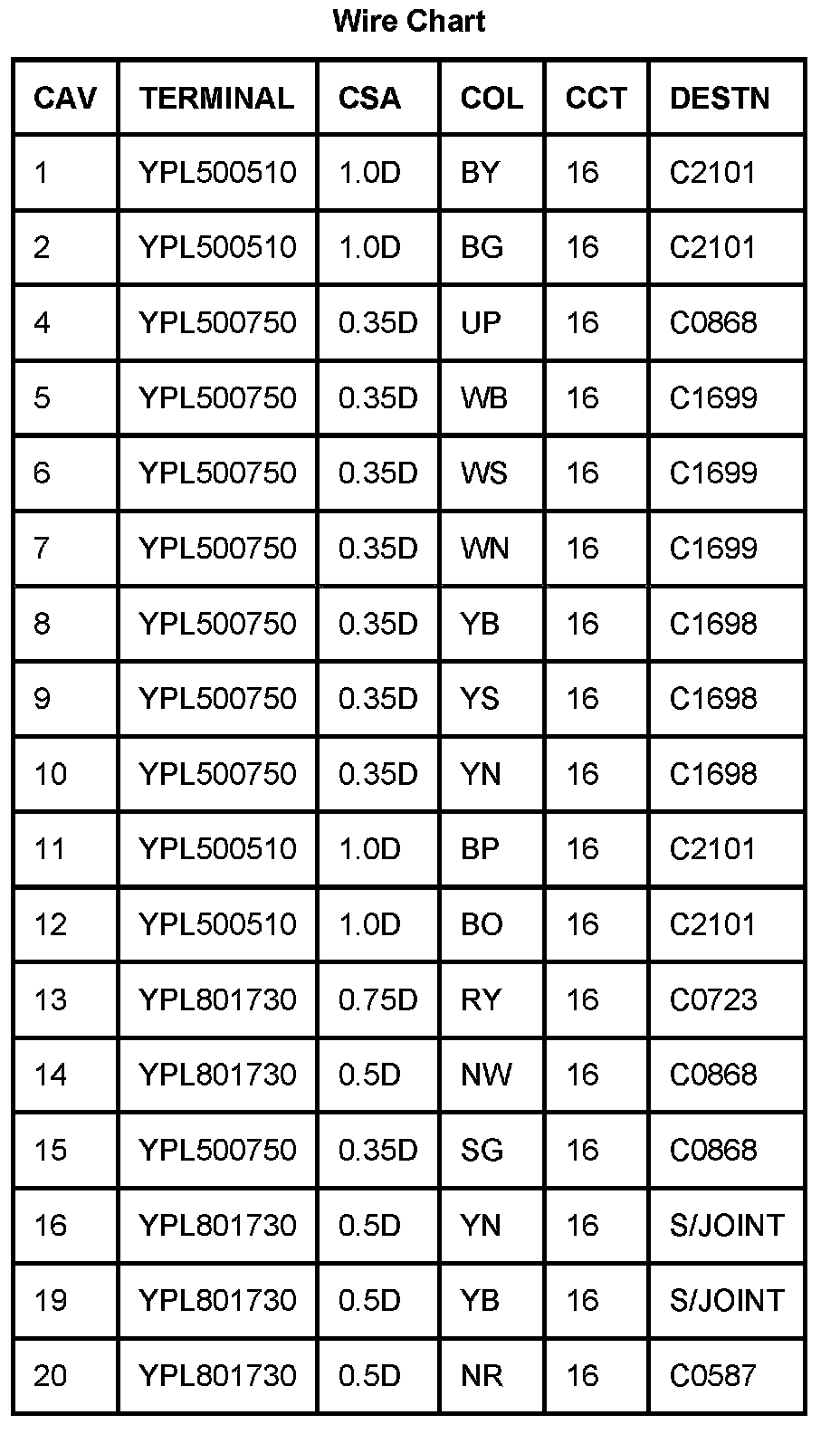

C2321 (Part 1):
C2321 (Part 2):
