Air Duct: Service and Repair

Plenum Chamber

Service Repair No - 80.15.62

Removal
1. Secure the hood in the service position.
^ Release the support struts.
2. Disconnect the battery ground cable.

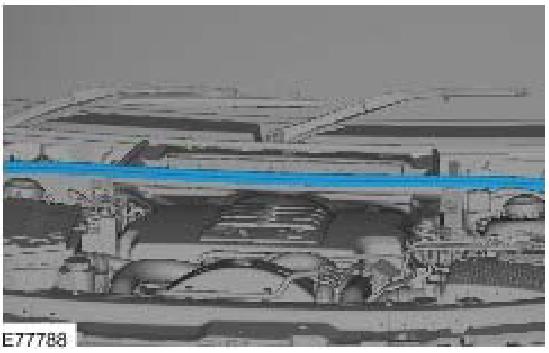

3. Remove the hood seal from the plenum chamber.





4. Remove the plenum chamber.
^ Remove the 2 nuts.
^ Vehicles with diesel engine only: Release the air conditioning (A/C) line bracket.





NOTE: Do not disassemble further if the component is removed for access only.

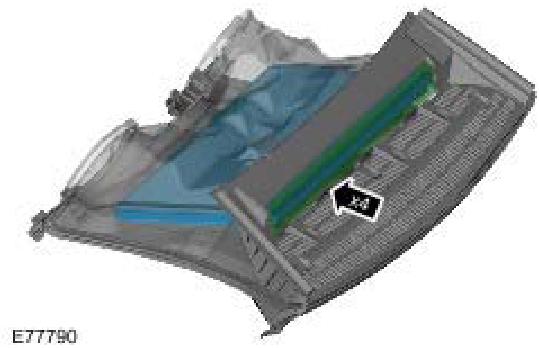

5. Remove the pollen filter.
^ Release the 4 clips.
^ Release the pollen filter housing cover.





Installation
1. Install the pollen filter.
^ Secure the pollen filter housing cover.

NOTE: Make sure that the air inlet seals are fully seated before installation.

2. Install the plenum chamber.
^ Vehicles with diesel engine only: Attach the A/C line bracket.
^ Tighten the nuts to 10 Nm (7 ft. lbs.).
3. Install the hood seal.
4. Connect the battery ground cable.
5. Connect the hood support struts.
