Cabin Air Filter / Purifier: Locations

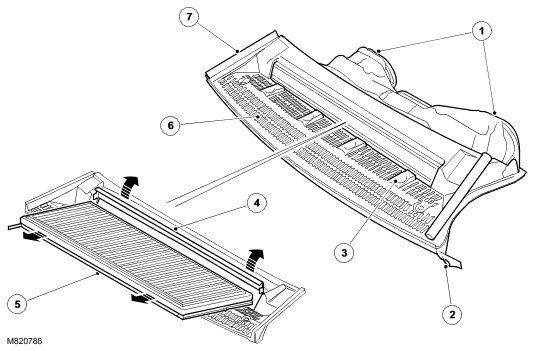

CABIN AIR FILTER




1 Air outlet to heater assembly
2 Fixing lug
3 Door catch
4 Door
5 Particle or particle/odor filter
6 Inlet grille
7 Seal

The cabin air filter consists of a serviceable particle filter, or a particle/odor filter, which is installed in the air inlet duct. The cabin air filter prevents odors and/or particulate matter from entering the vehicle with the fresh air.
