Condenser HVAC: Service and Repair

Condenser Core - 4.4L

Service Repair No - 82.15.07

Removal
1. Disconnect the battery ground cable.

WARNING: Do not work on or under a vehicle supported only by a jack.Always support the vehicle on safety stands.

2. Raise and support the vehicle.
3. Remove the radiator assembly.

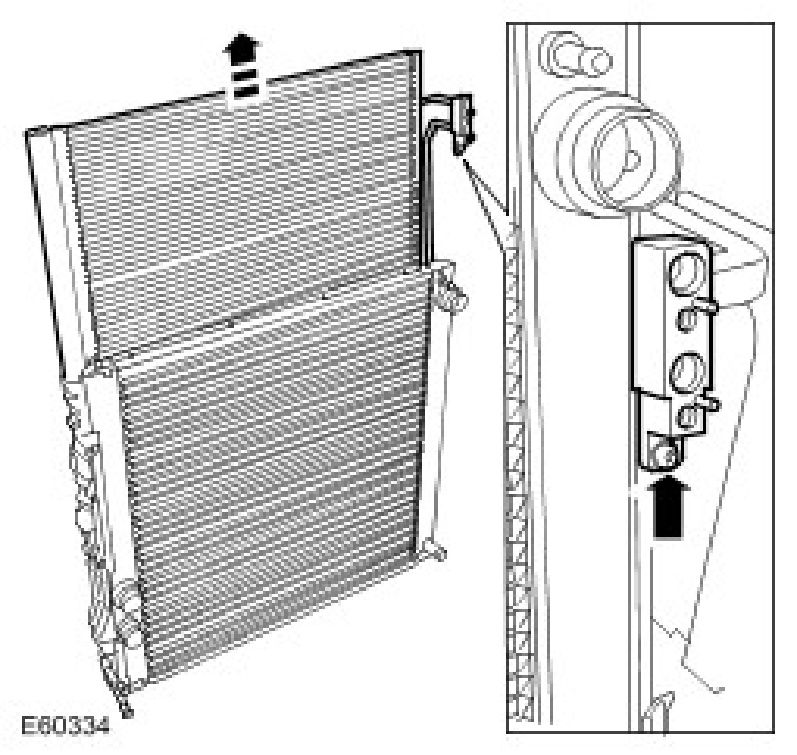

4. Remove the condenser core.
^ Remove the Torx screw.





Installation
1. Install the condenser core.
^ Tighten the Torx screw.
2. Install the radiator assembly.
3. Connect the battery ground cable.
