Solar Sensor: Service and Repair

Sunload Sensor

Service Repair No - 82.20.92

Removal

WARNING:
^ Persons working on the supplemental restraint system (SRS) must be fully trained and have been issued with the safety guidelines.
^ Allow a period of 10 minutes to elapse after disconnecting the battery before undertaking any work on the SRS.
^ The SRS electrical connectors are unique.DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
^ The correct procedures must always be used when working on SRS components.
^ It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
^ Always disconnect both battery cables before beginning work on the SRS system.Disconnect the ground cable first.Never reverse connect the battery.
^ Take extra care when handling SRS components.

1. Make the air bag supplemental restraint system (SRS) safe.
2. Disconnect the battery ground cable.
3. Remove the instrument panel reinforcement.

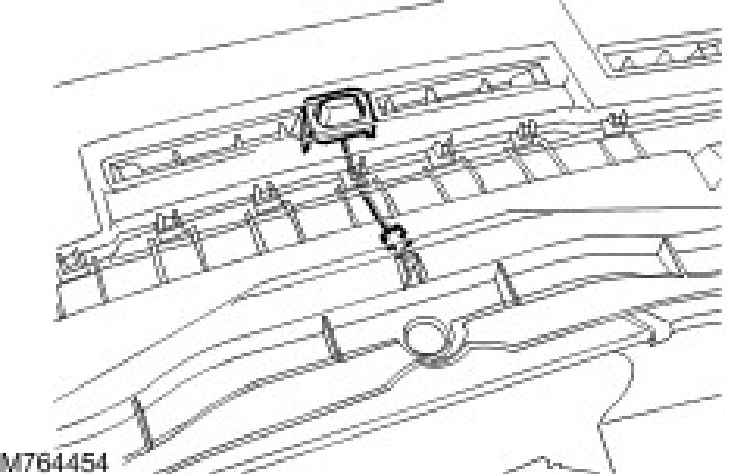

4. Remove the sunload sensor.
^ Release the 2 clips.





Installation
1. Install the sunload sensor.
^ Secure the clips.
2. Install the instrument panel reinforcement.
3. Connect the battery ground cable.
