Driver/Vehicle Information Display: Service and Repair

Integrated Control Panel (ICP)

Removal

WARNING:
^ Persons working on the supplemental restraint system (SRS) must be fully trained and have been issued with the safety guidelines.
^ Allow a period of 10 minutes to elapse after disconnecting the battery before undertaking any work on the SRS.
^ The SRS electrical connectors are unique.DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
^ The correct procedures must always be used when working on SRS components.
^ It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
^ Always disconnect both battery cables before beginning work on the SRS system.Disconnect the ground cable first.Never reverse connect the battery.
^ Take extra care when handling SRS components.

1. Make the air bag supplemental restraint system (SRS) safe.
2. Disconnect the battery ground cable.
3. Remove the instrument panel upper section.
4. Remove the 4 screws securing the integrated control panel (ICP) bracket to the instrument panel.

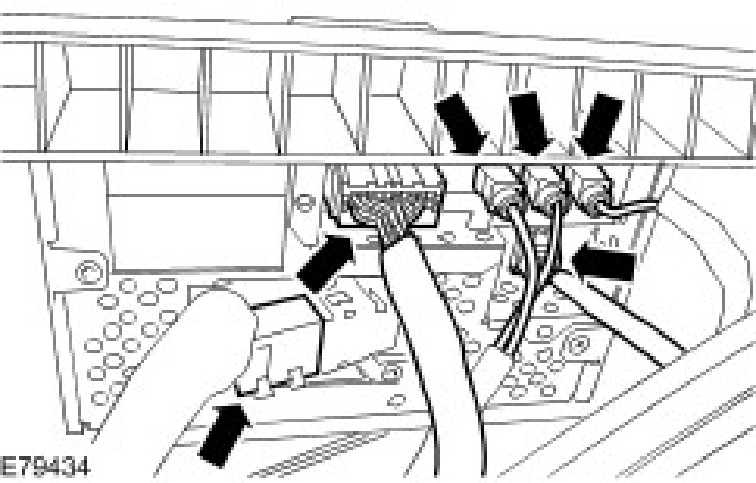

5. Remove the ICP assembly.
^ Disconnect the 3 electrical connectors.
^ Disconnect the 3 co-axial cables.





NOTE: Do not disassemble further if the component is removed for access only.

6. Remove the ICP from the ICP bracket.
^ Remove the 4 screws.





Installation
1. Install the ICP to the ICP bracket.
^ Install the 4 screws.
2. Install the ICP assembly.
^ Connect the 3 electrical connectors.
^ Connect the 3 co-axial cables.
3. Install the 4 screws securing the ICP bracket to the instrument panel.
4. Install the instrument panel upper section.
5. Connect the battery ground cable.
