Center Mounted Brake Lamp: Service and Repair

High Mounted Stoplamp

Service Repair No - 86.41.32

Removal
1. Remove the rear spoiler.

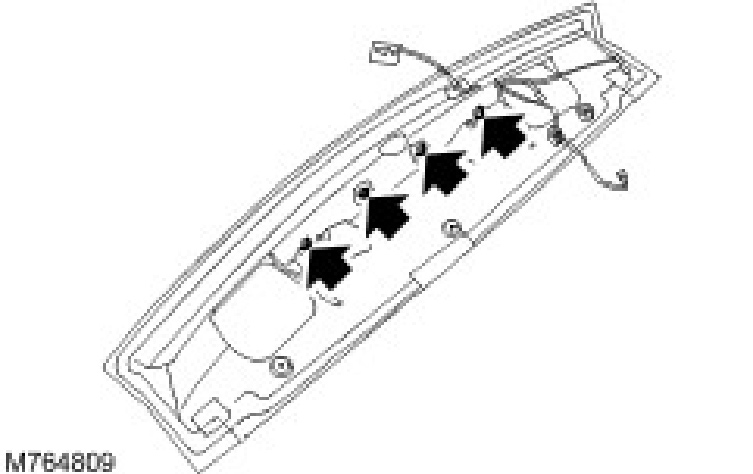

2. Remove the high mounted stoplamp.
^ Remove the 4 screws.
^ Release the wiring harness.





Installation
1. Install the high mounted stoplamp.
^ Install the screws.
^ Secure the wiring harness.
2. Install the rear spoiler.
