Headlamp: Adjustments

Headlamp Adjustment

Service Repair No - 86.40.17

NOTE:
^ With self leveling suspension, make sure the vehicle is at the standard ride height.
^ The headlamp setting is 1.2% below horizontal and parallel.

1. Align the headlamp beam setting equipment to one headlamp.
2. Switch the headlamps on and to dipped beam.

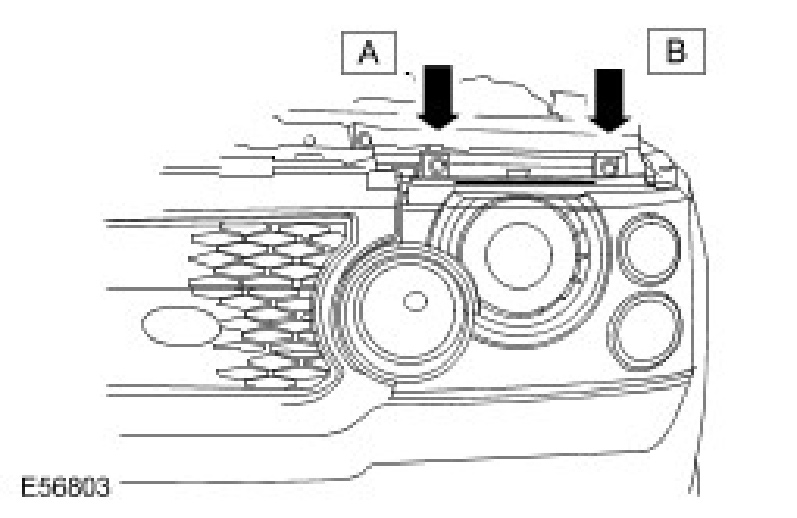

3. Adjust the headlamps with an Allen Key.
^ Rotate the adjuster A for vertical alignment.
^ Rotate the adjuster B for horizontal alignment.





4. To adjust the second headlamp, repeat the above procedure.
