Cell Phone - Phonebook Over Bluetooth(R) Feature
No.: LTB00095Issue: 2
Date: 05 May 2008
ISSUE "2" CHANGES ARE HIGHLIGHTED WITH GRAY BACKGROUND
SECTION: 419
Phonebook Over Bluetooth - Added Feature

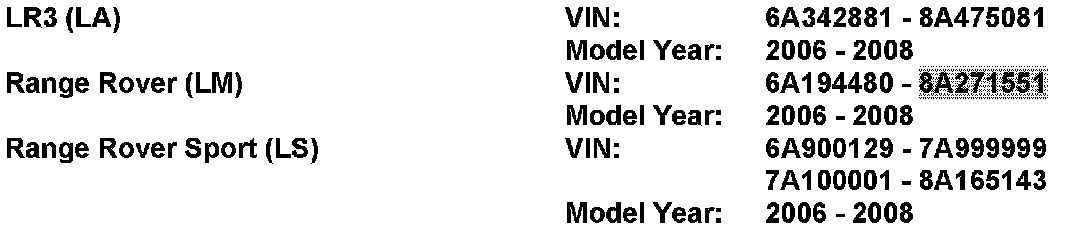

AFFECTED VEHICLE RANGE
CONDITION SUMMARY:
Situation:
A customer whose vehicle is fitted with the Land Rover integrated phone system may request that they be able to access their cellular telephone's phonebook over the Bluetooth feature. This new feature will enable a customer using a Land Rover-approved Bluetooth telephone to display the phone's phonebook and call history on the vehicle display. The phonebook contacts can also be dialed using the vehicle interface.
NOTE:
This procedure is at the request and expense of the customer. It is not to be processed as a Warranty claim.
Action:
Should a customer request this feature be added, follow the Installation Procedure outlined below to reconfigure the Cellular Telephone Control Module.
PARTS:
No parts necessary
TOOLS
WARRANTY:
NOTE:
This procedure is at the request and expense of the customer. It is not to be processed as a Warranty claim. The installation time is approximately 1.0 hours.
INSTALLATION PROCEDURE
RECONFIGURE THE CELLULAR TELEPHONE CONTROL MODULE
CAUTION:
A Midtronics PSC-550 Vehicle Power Supply must be connected to the vehicle battery during diagnosis.
1. Connect the Midtronics PSC-550 power supply to the vehicle battery.
NOTE:
IDS must be loaded with software release DVD 111 with Patch File 6 or later.
2. Connect the IDS to the vehicle and begin a new diagnostic session by entering the correct VIN for the current vehicle.
3. Follow the IDS prompts to read the vehicle configuration.
4. Select 'No' when prompted 'Do you wish to read diagnostic trouble codes?'
5. Select 'tick' to continue.
6. Select the 'Vehicle Configuration' tab when Content Model is displayed.
7. From the Vehicle Configuration menu, configure the 'Cellular telephone control module' by selecting from the drop-down menu:
^ 'Module programming' > 'Configure existing module' > 'Cellular telephone control module'
8. Select 'tick' to continue.
9. When the 'TEL_SYSTEM_A module' Network integrity test results file displays, locate '0xf191vm_ecu_hw_pn' and record the "value" on the repair order. (Figure 1)
10. Select the value recorded on the repair order when the pop-up screen appears. (Figure 2)
11. Select 'Active' when prompted 'Is phone voice control active?'
12. Press 'tick' to continue.
13. Select 'Yes' when prompted 'Do you wish to install phonebook over bluetooth upgrade?'.
14. Press 'tick' to continue.
15. Select 'US English' when prompted 'Select language'.
16. Press 'tick' to continue.
17. Select appropriate hardware type (noted in step 9) when prompted 'Select the telephone hardware type?'.
18. Press 'tick' to continue.
19. Verify software to be downloaded.
20. Press 'tick' to continue.
21. When completed, exit the current session.
22. Disconnect the IDS and Midtronics PSC-550 Vehicle Battery Supply.
