Exterior Mirror

Exterior Mirror

Service Repair No - 76.11.10

Removal

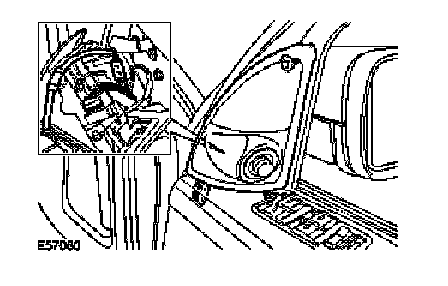

1. Remove the cheater panel.
^ Carefully release the 3 clips.
^ Disconnect the 2 electrical connectors.





2. Starting at the lower edge, carefully remove the grab handle cover.
^ Release the 2 clips.

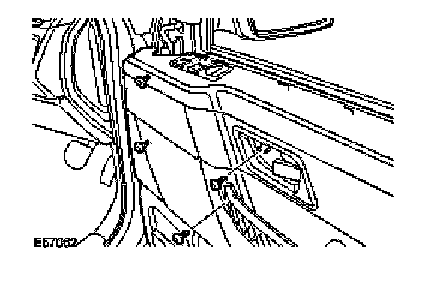

3. Release the forward upper corner of the front door trim panel.
^ Release the screw cover.
^ Remove the 2 screws.
^ Release the 5 clips.





4. Remove the exterior rear view mirror.
^ Disconnect the electrical connectors.
^ Remove the 3 bolts.





Installation
1. Install the exterior rear view mirror.
^ Tighten the bolts to 6 Nm (4 lb.ft).
^ Connect the electrical connectors.
2. Secure the front door trim panel.
^ Secure the clips.
^ Install the screws.
^ Install the screw cover.
^ Install the grab handle cover.
3. Install the grab handle cover.
4. Install the cheater panel.
^ Connect the electrical connectors.
^ Secure the clips.
