Sunroof / Moonroof: Adjustments

Roof Opening Panel Alignment

Service Repair No - 76.84.82

1. With the roof opening panel closed, check the alignment of the glass to the roof panel. The glass should be central in its aperture. Profile of sunroof to body: front edge, set flush or up to 1.0 mm (0.040 inch) low; rear edge, set flush or up to 1.0 mm (0.040 inch) high.





2. Open the roof opening panel blind.

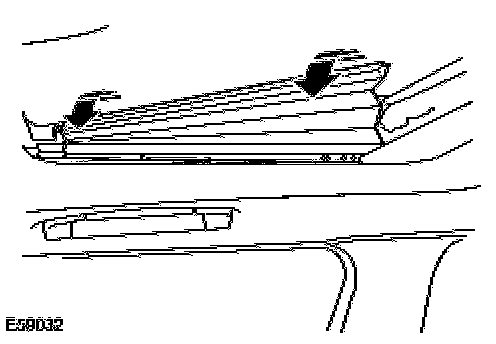

3. Remove the cover.
^ Repeat the above procedure for the other side.





4. Repeat the above procedure for the other side.

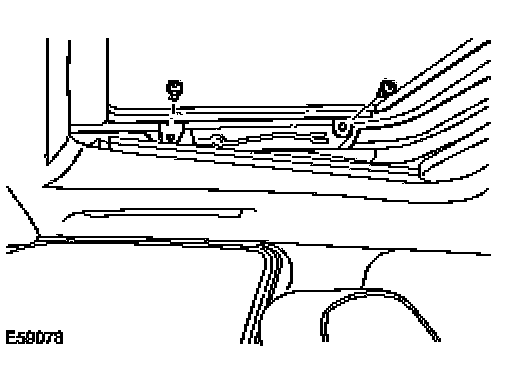

5. Align the roof opening panel.
^ Tighten the Torx screws to 6 Nm (4 lb.ft).
6. Install the cover.
^ Repeat the above procedure for the other side.
7. Close the roof opening panel blind.
