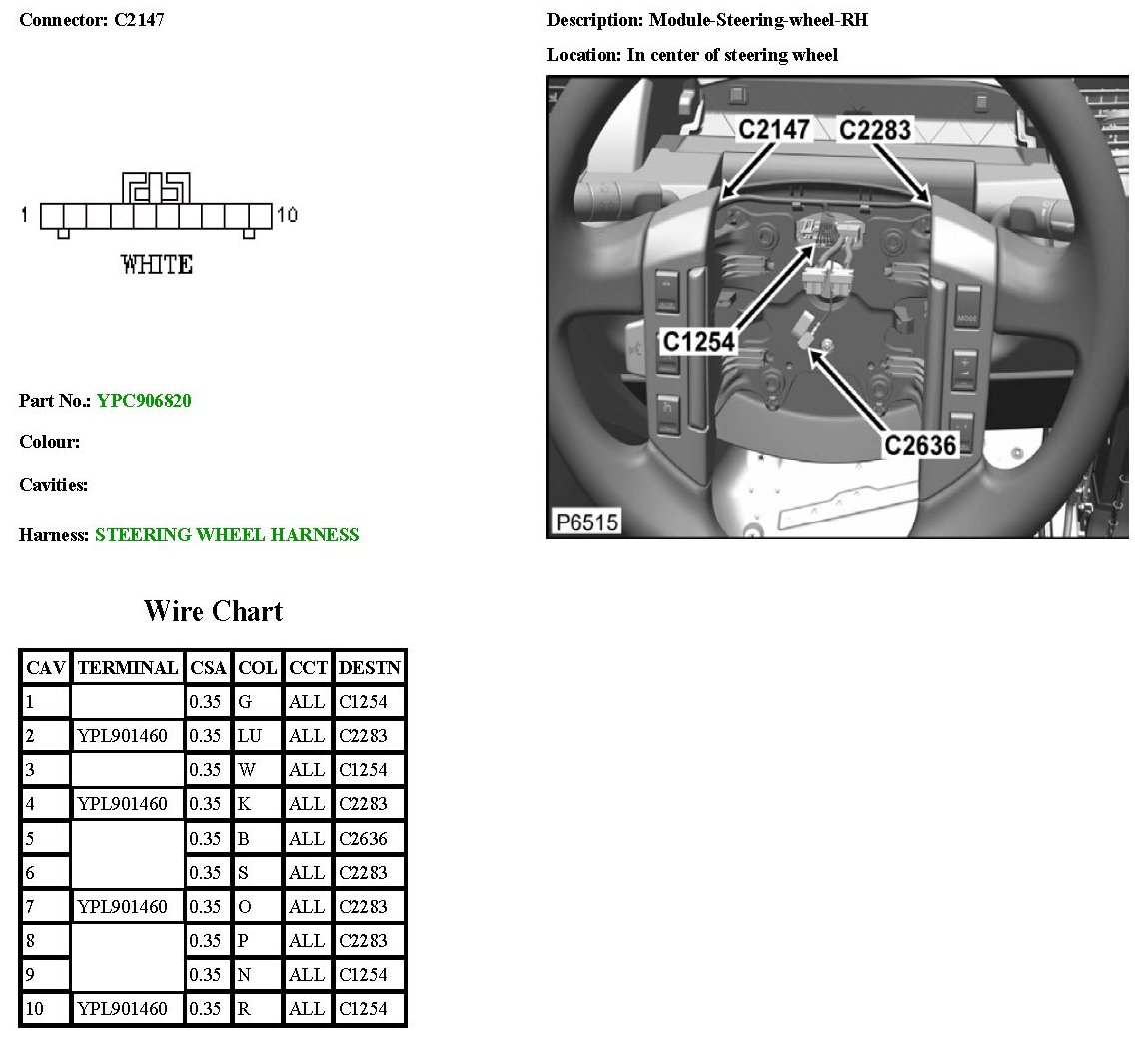

Steering Mounted Controls Communication Module
>>
Module-Steering-Wheel-RH
Module-Steering-Wheel-RH
C2147:
