Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2007
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Pressure Sensor
>>
Sensor-Tire-Rear-LH
Sensor-Tire-Rear-LH
Sensor-Tire-Rear-LH

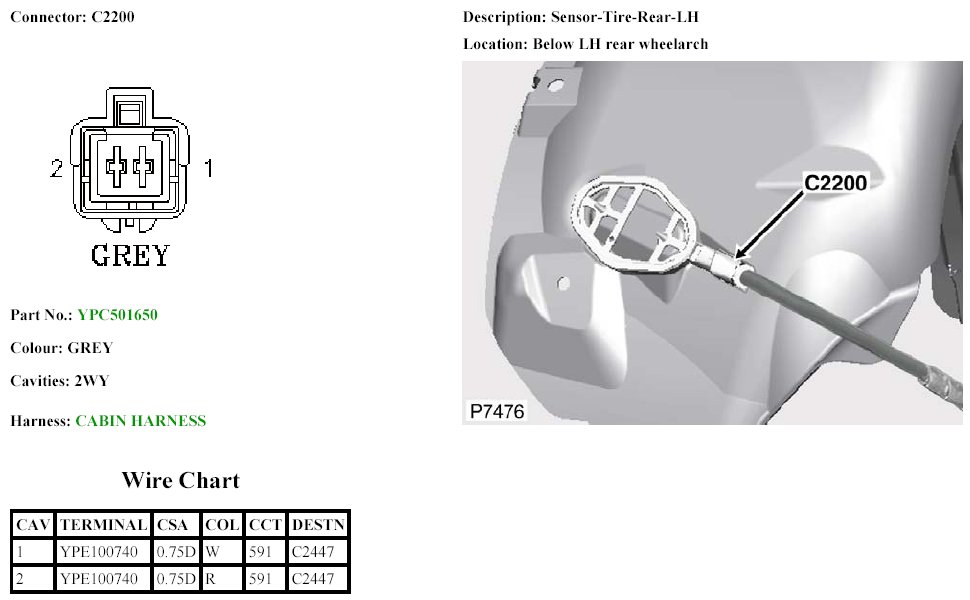

C2200:
