Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0201 - C0300 >> C0276D

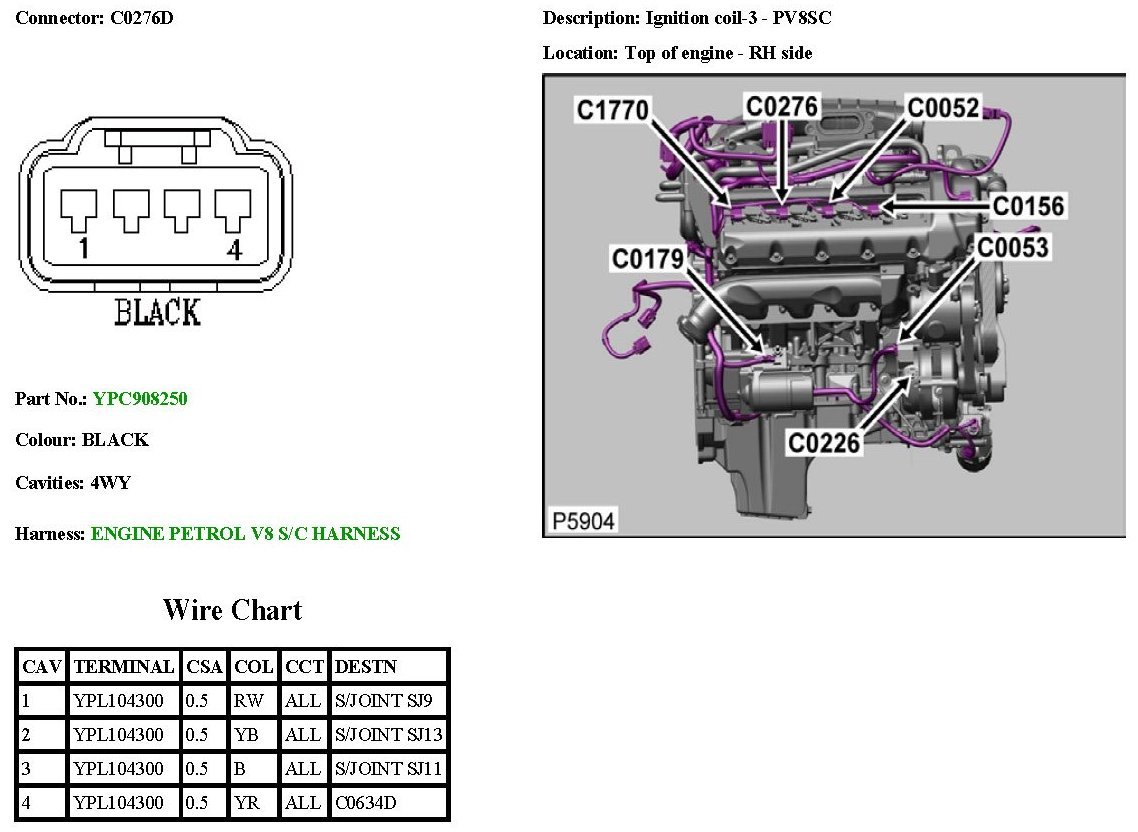

C0276D

C0276D:
