Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C2201 - C2300 >> C2273E

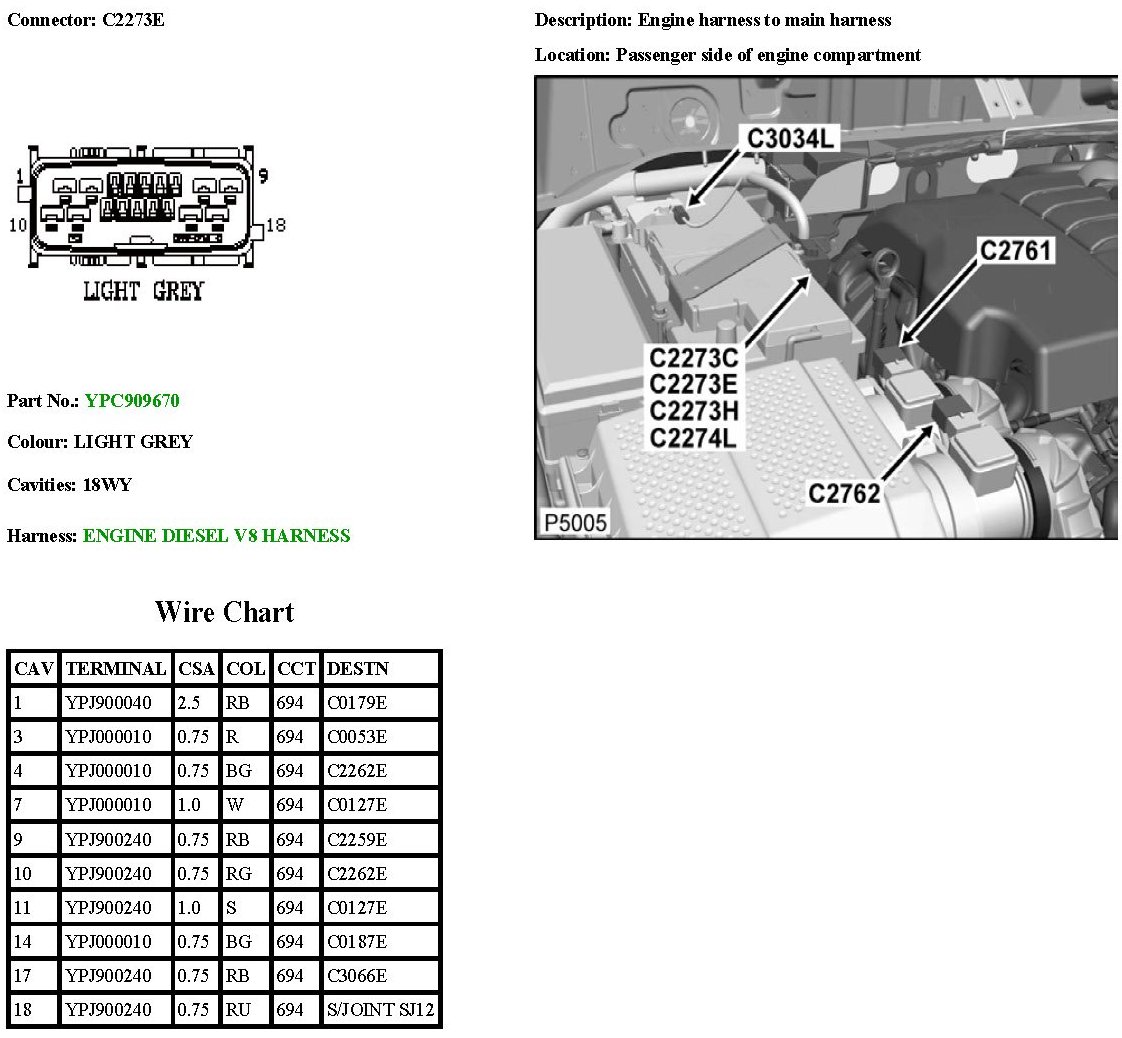

C2273E

C2273E:
