Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C2501 - C2600 >> C2564R

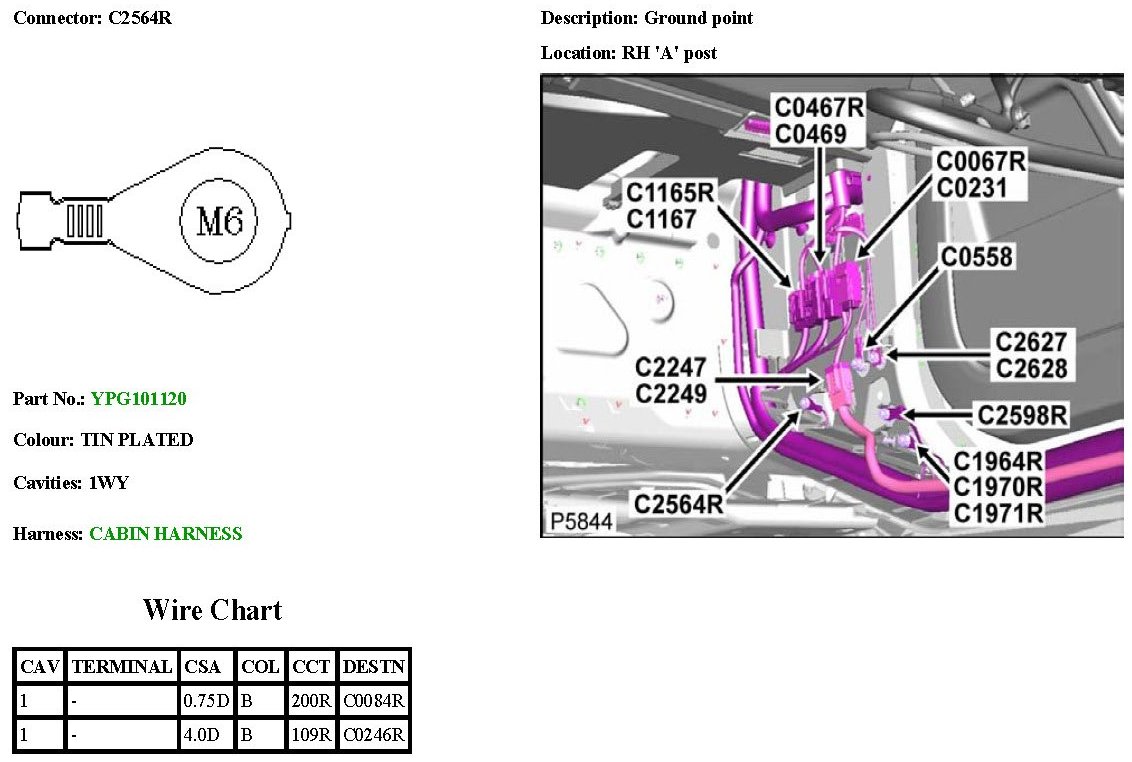

C2564R

C2564R:
