Antitheft and Alarm Systems

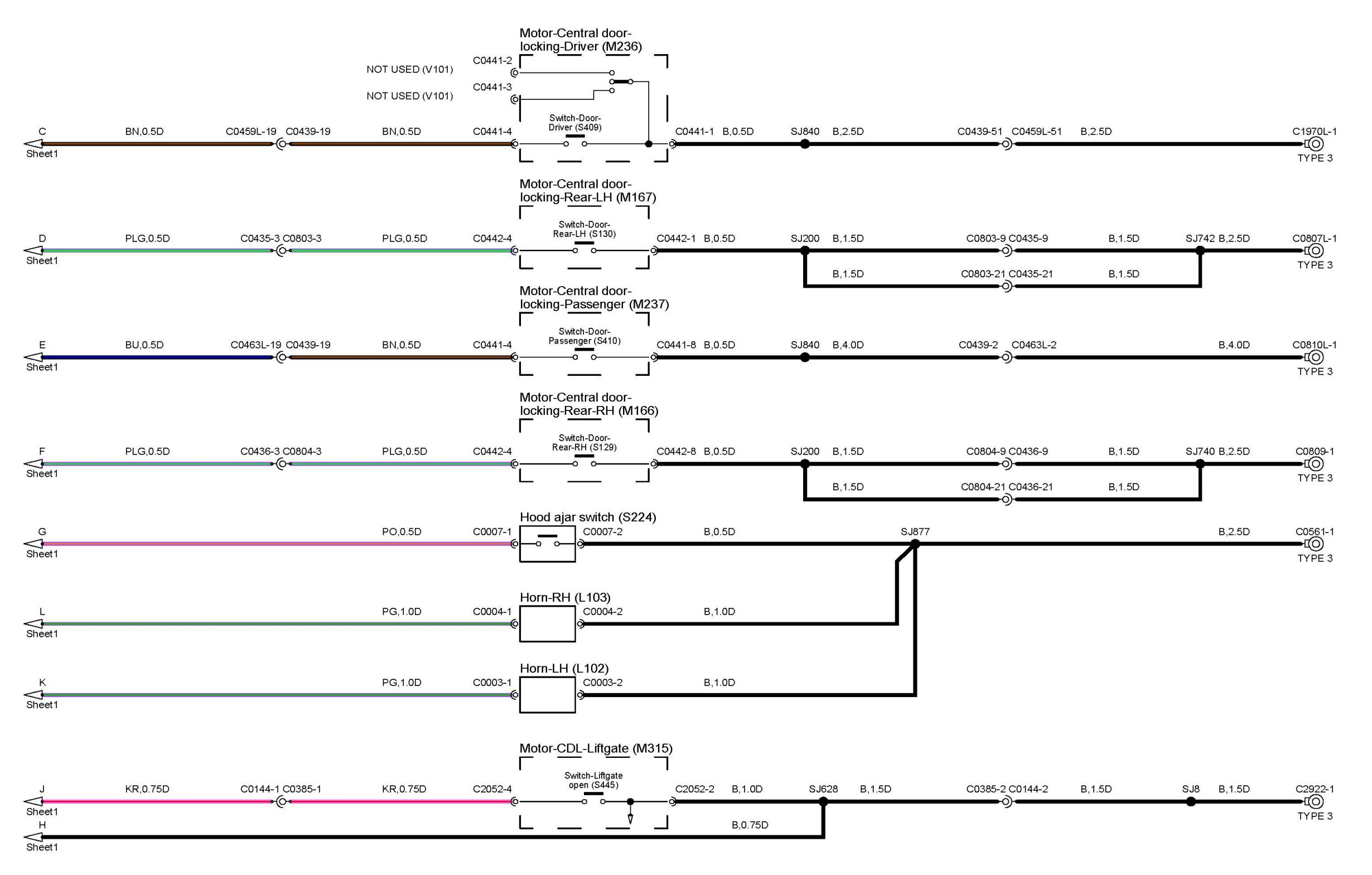

Anti-Theft System - Active (Sheet 1):

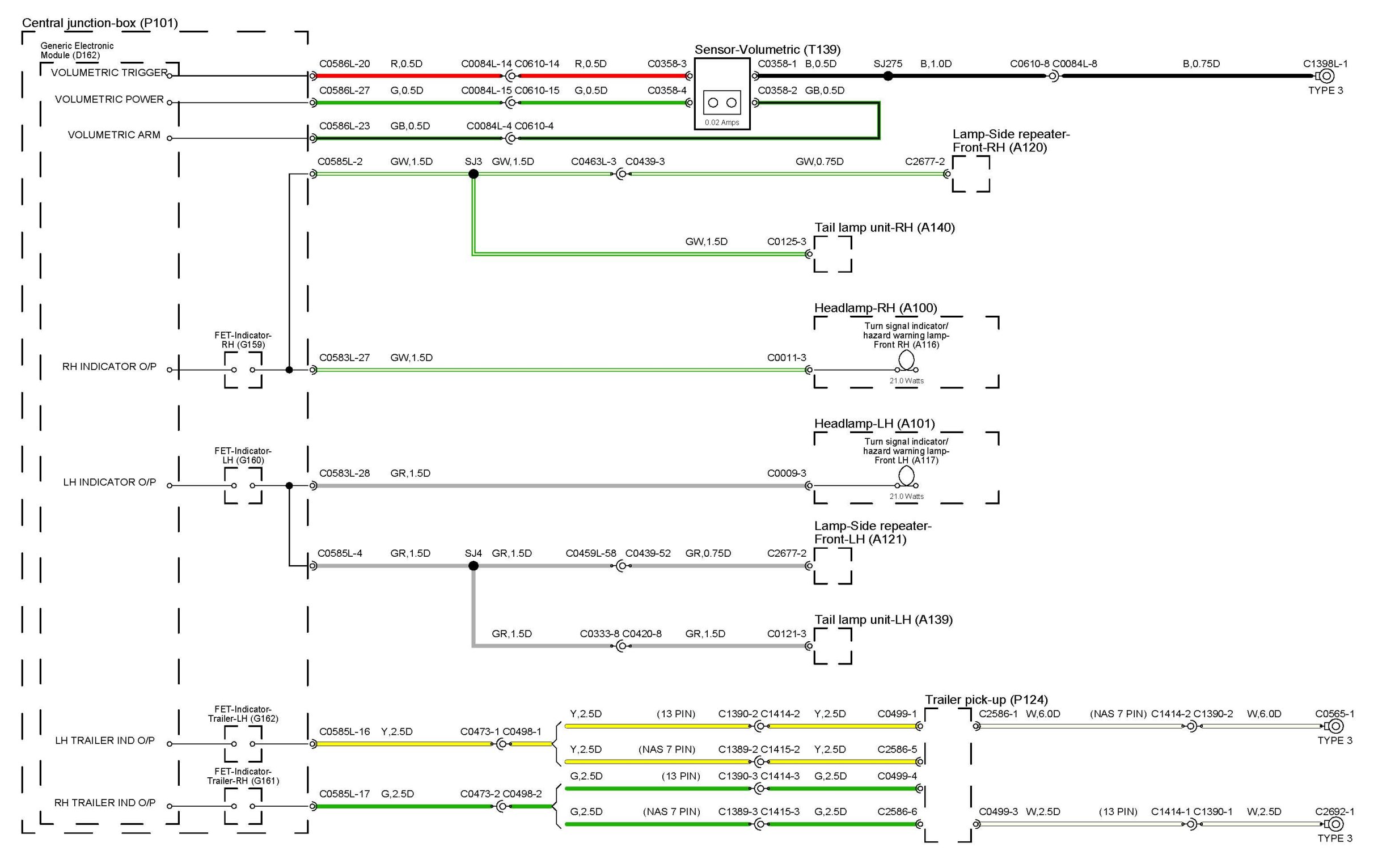

Anti-theft System - Active (Sheet 2):

Anti-theft System - Active (Sheet 3):

Anti-theft System - Passive:

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connectors pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
