Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> Switch Pack-Center Console

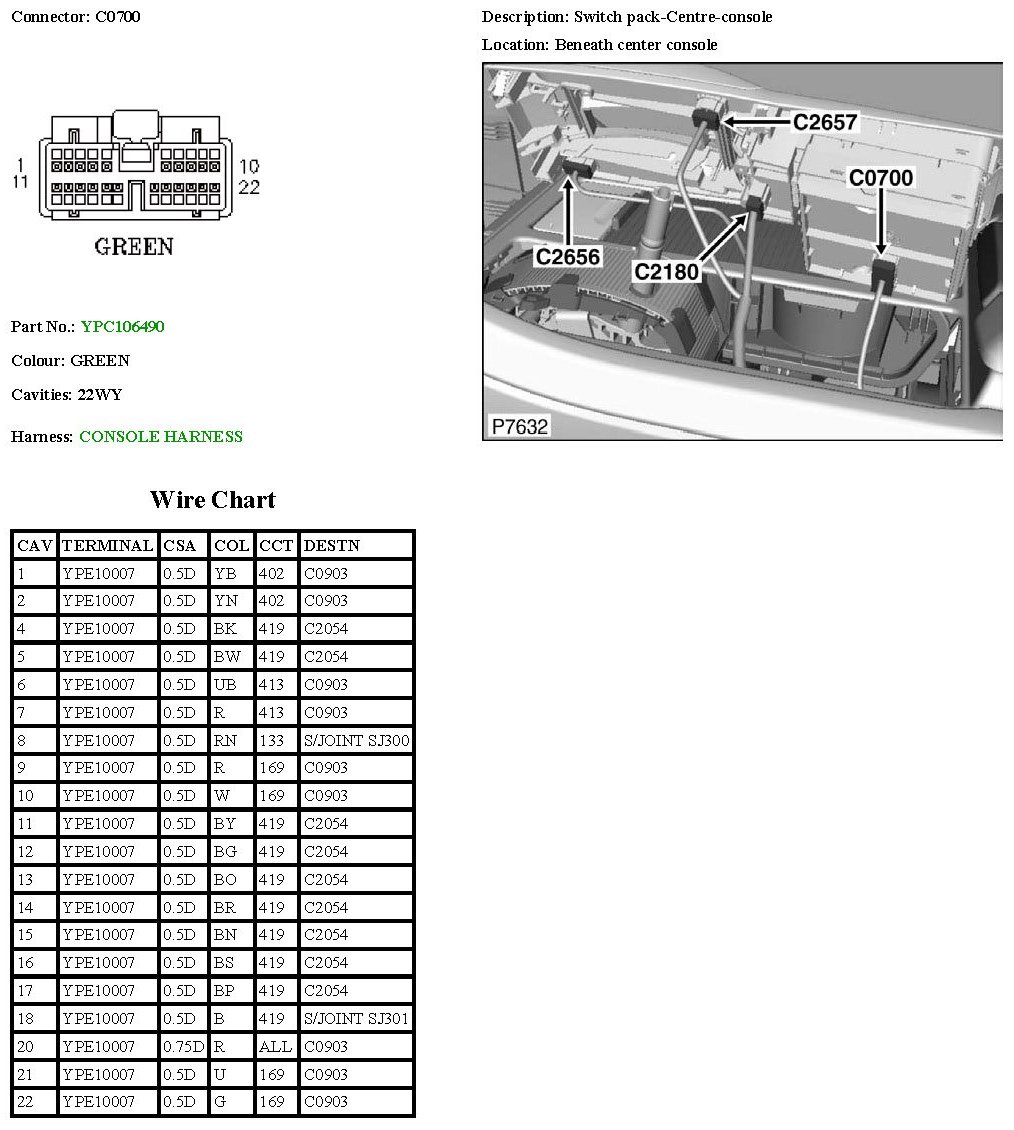

Switch Pack-Center Console

C0700:
