Air Cleaner Housing: Service and Repair

Air Cleaner

Service Repair No - 19.10.01

Removal
1. Disconnect the battery ground cable.

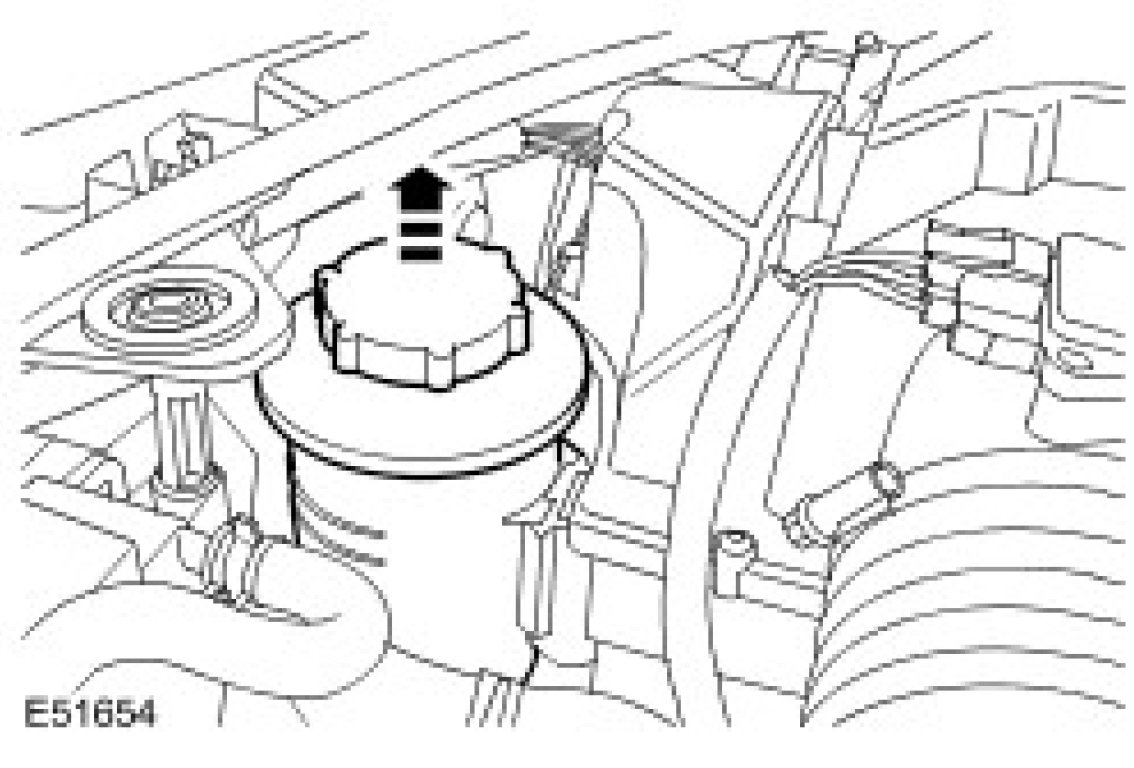

2. Release the Dynamic Response reservoir.
^ Release the clip.
^ Tie the reservoir aside.





3. Disconnect the air intake resonator.
^ Release the clip.

4. Disconnect the mass air flow (MAF) sensor electrical connector.

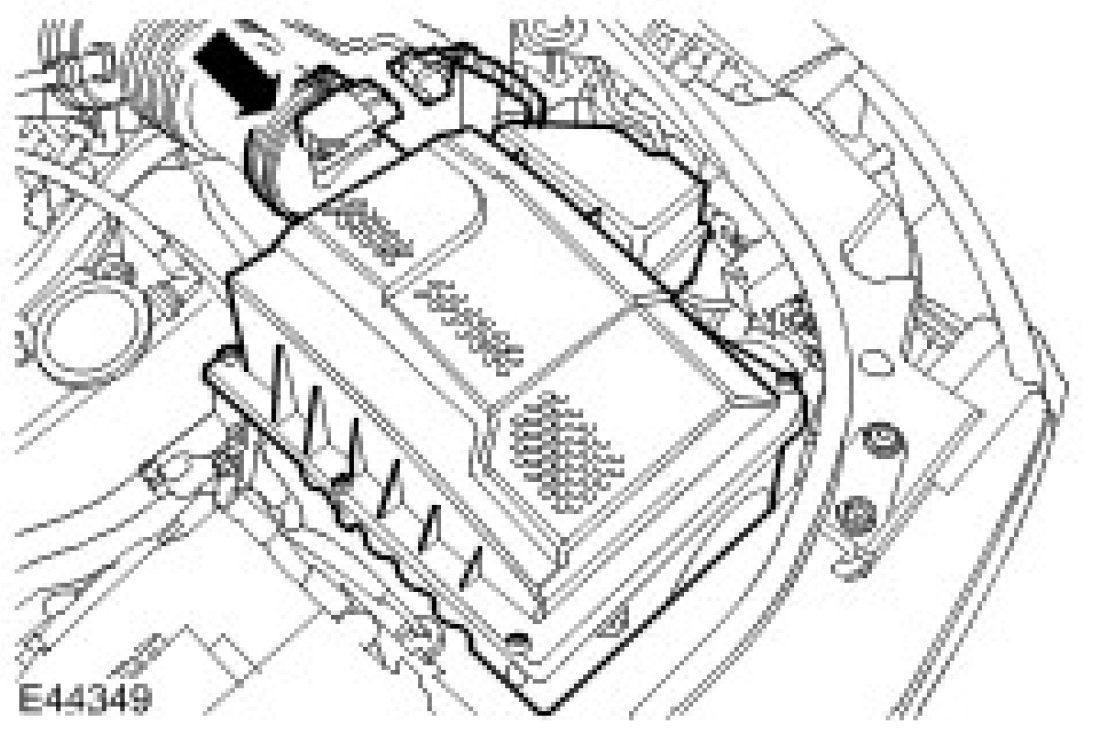

5. Remove the air cleaner assembly.





Installation
1. To install, reverse the removal procedure.

NOTE: When installing the air cleaner, make sure the locating pegs fit securely into the grommets.
