Electronic Brake Control Module
Electronic Brake Control Module

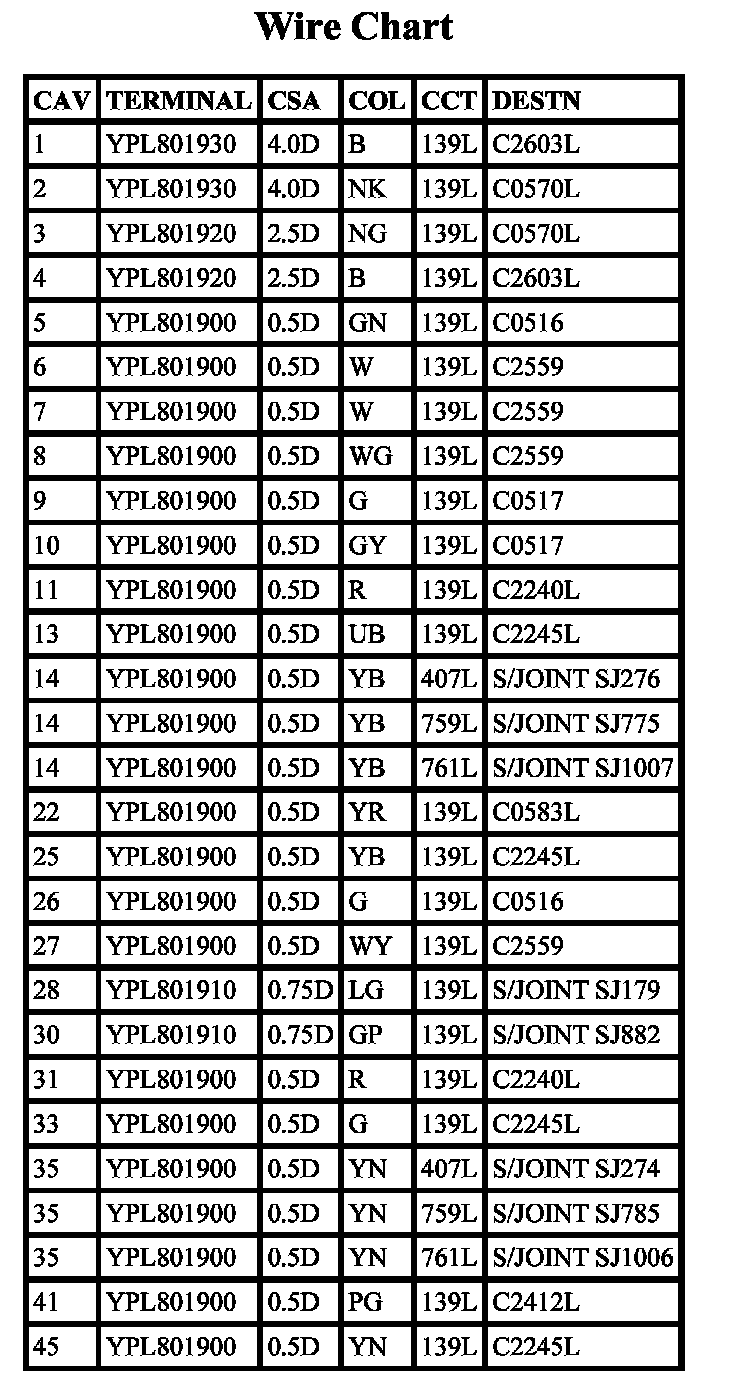

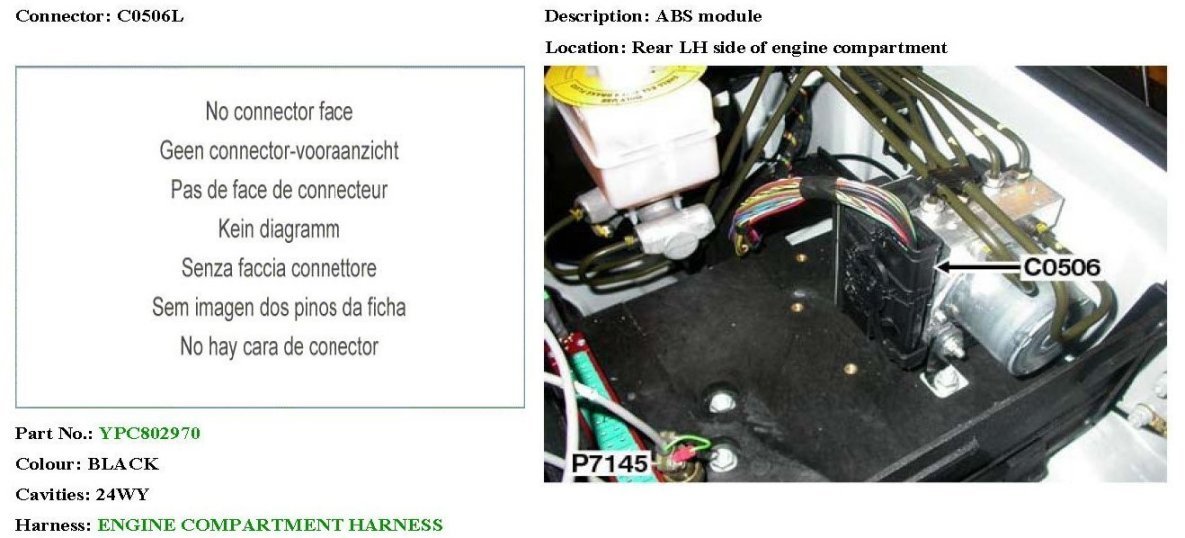

C0506L (Part 1):
C0506L (Part 2):
C0506R (Part 1):
C0506R (Part 2):
