Expansion Valve: Service and Repair

Thermostatic Expansion Valve

Service Repair No - 82.25.01

Removal

1. Evacuate the A/C system.
2. Remove the instrument panel upper section.

CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.

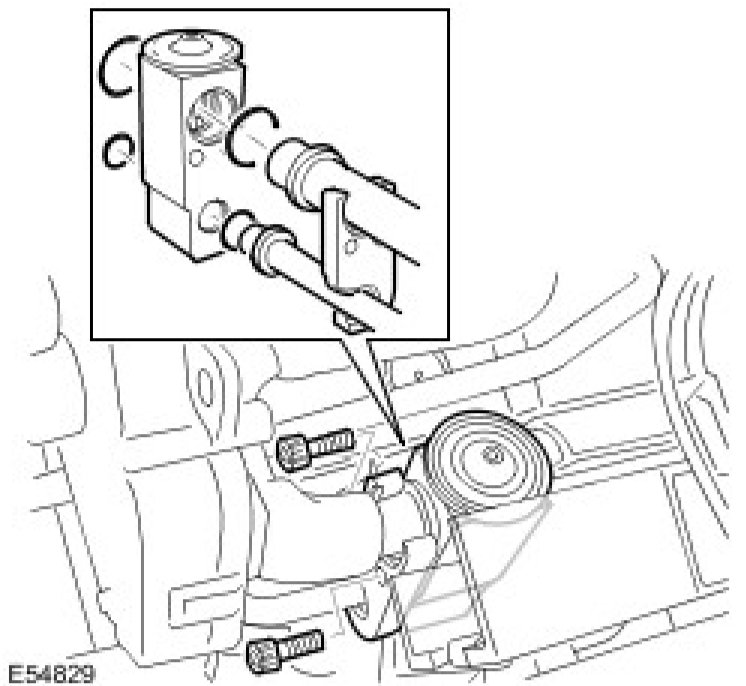

3. Remove the thermostatic expansion valve.
^ Remove the cover.
^ Remove the 2 Allen bolts.
^ Remove and discard the 4 O-ring seals.






Installation

1. Install the thermostatic expansion valve.
^ Clean the components.
^ Install the new O-ring seals.
^ Tighten the Allen bolts to 5 Nm (4 lb.ft).
^ Install the cover.
2. Install the instrument panel upper section.
3. Recharge the A/C system.
