Body - Exterior Door Handle Replacement

No.: LS-501-017

Issue: 1

Date: May 16, 2006

SECTION: 501-14

Exterior Door Handle Replacement

AFFECTED VEHICLE RANGE:

Range Rover Sport (LS) VIN: 6A900129 onwards

CONDITION SUMMARY:

DESIGN CHANGE TO EXTERIOR DOOR HANDLES

Situation:
A design change to the exterior door handle now requires replacement door handles to be ordered according to a specific VIN range. The new handles are interchangeable with original equipment, but the new handles have a slightly different appearance.

Action:
Should an exterior door handle require replacement, refer to VIN range specified for each design level part number to order the appropriate replacement handle.

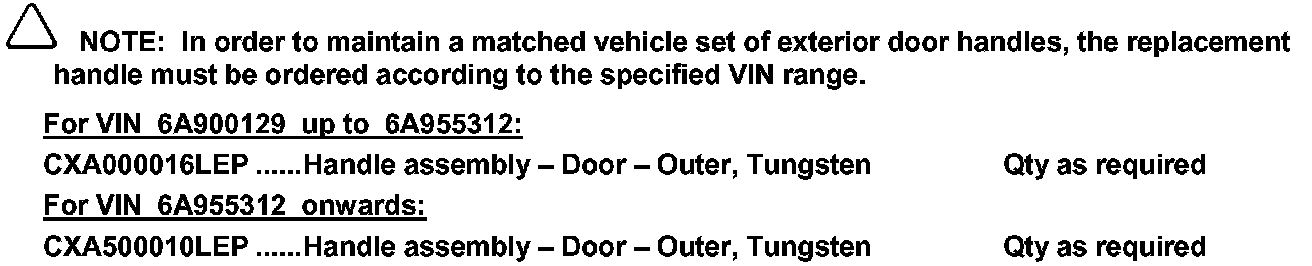

PARTS

WARRANTY:

Information purposes only. Normal warranty policy and procedures apply.

REPAIR PROCEDURE

REPLACE EXTERIOR DOOR HANDLE

1. Note the vehicle VIN and select the appropriate replacement door handle part number:

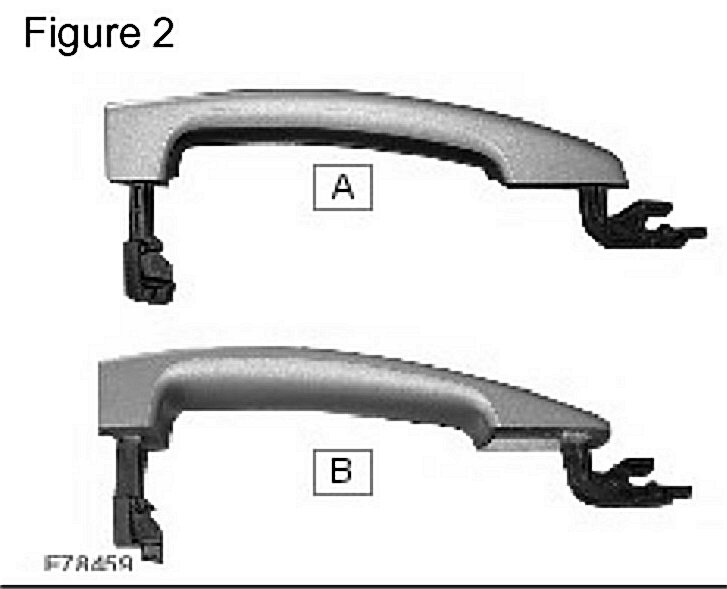

^ If the vehicle VIN is from 6A900129 to 6A955312, order part number CXA000016LEP, as required. (Figures 1B and 2B)

^ If the vehicle VIN is 6A955312 and later, order part number CXA500010LEP, as required. (Figures 1A and 2A)
