Suspension - Revised Front Stabilizer Bushing Service

No.: LTB00152

Issue: 1

Date: 10 July 2008

SECTION: 204

Revised Workshop Procedure - Remove / Install Front Stabilizer Bar Bushing





AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

A revised workshop procedure has been developed for the removal and installation of the front stabilizer bar bushings on vehicles equipped with Dynamic Response System. In the revised procedure, the front driveshaft is only released from the front differential and supported using suitable securing straps.

Action:

When removing / installing the front stabilizer bar bushings, refer to the Repair Procedure outlined below for the revised workshop procedure.

PARTS:

No parts necessary

TOOLS:

Refer to GTR Workshop Manual section 204-06 (60.60.47) for required special tools

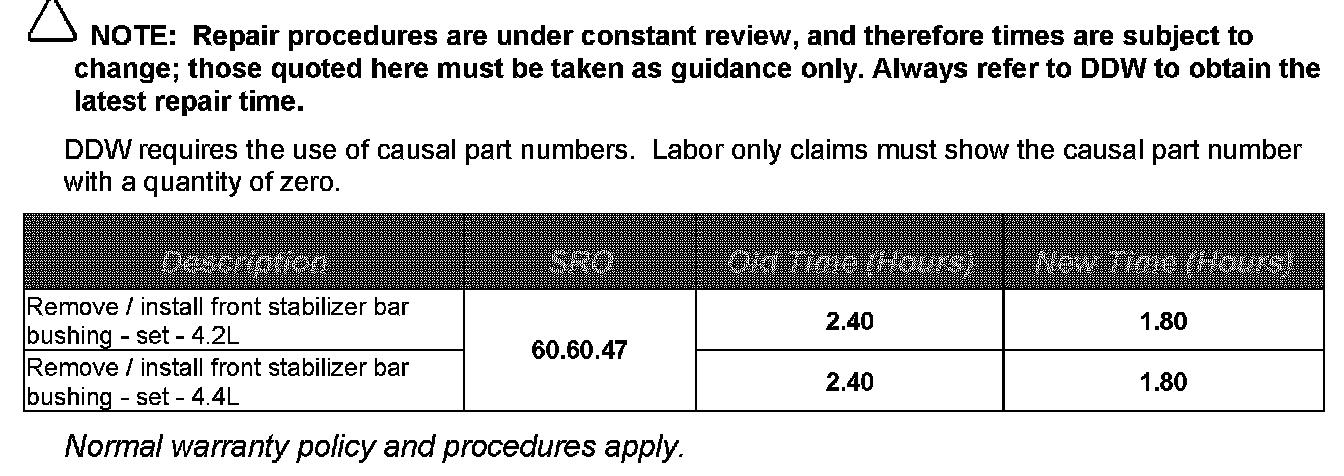

WARRANTY

REPAIR PROCEDURE

NOTE:
Global Technical Resource (GTR) lookup sequence is as follows:

GTR Home > NAS > LS - Range Rover Sport > Service Information > Model Year > Workshop Manuals > 2: Chassis > 204-06: Ride and Handling Optimization

1. Refer to GTR Workshop Manual section 204-06 (60.60.47) to remove / install the front stabilizer bar bushings.
