Headlamp Washer Pump: Service and Repair

Headlamp Washer Pump

Service Repair No - 84.20.21

Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.
2. Remove the LH fender splash shield.

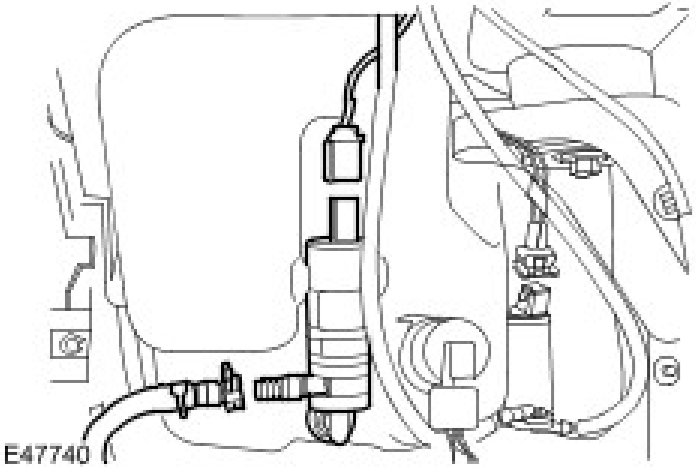

3. Release the headlamp washer pump hose.
^ Drain the washer reservoir fluid.
4. Disconnect the headlamp washer pump electrical connector.
5. Remove the headlamp washer pump.
^ Discard the O-ring seal.





Installation

1. Install the headlamp washer pump.
^ Install a new O-ring seal.
2. Connect the headlamp washer pump electrical connector.
3. Connect the headlamp washer pump hose.
4. Install the fender splash shield.
5. Lower the vehicle.
6. Top-up the windshield washer reservoir.
