Housing Assembly HVAC: Service and Repair

Plenum Chamber

Service Repair No - 80.15.62

Removal
1. Remove the A-pillar mouldings.
2. Remove the windshield wiper arms.

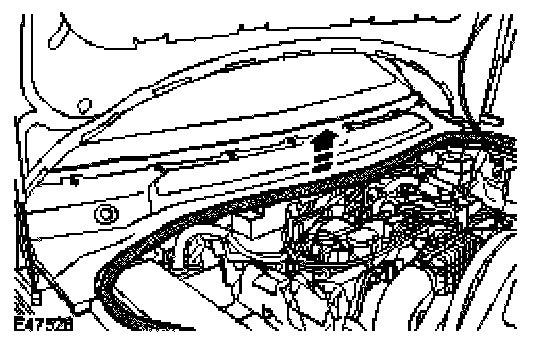

3. Release the hood seal from the plenum chamber.





4. Remove the plenum chamber panel. Release the 8 clips.

NOTE: Do not disassemble further if the component is removed for access only.

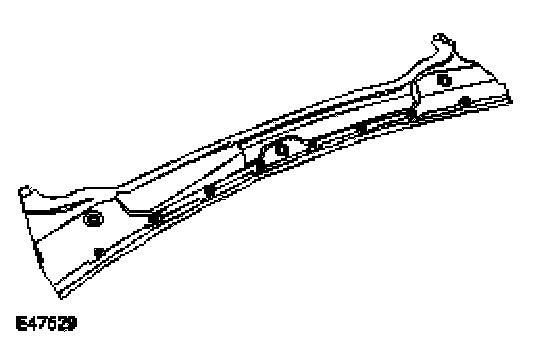

5. Remove the clips from the plenum chamber panel.





Installation
1. To install, reverse the removal procedure.
