Parking Assist Warning Indicator: Service and Repair

Parking Aid Speaker

Removal
1. Remove the C-pillar lower trim panel.
2. Remove the loadspace trim mounting bracket.
^ Remove the 2 screws.
^ Release the 2 clips.

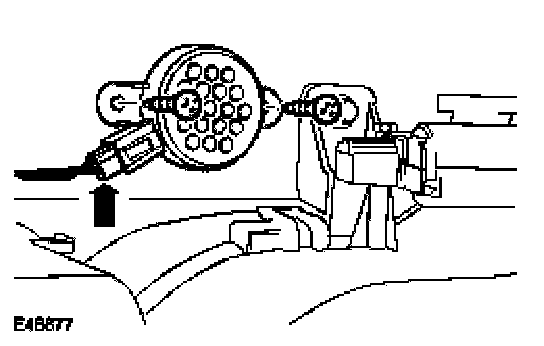

3. Remove the rear parking aid speaker.
^ Disconnect the electrical connector.
^ Remove the 2 screws.





Installation
1. To install, reverse the removal procedure.
