Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

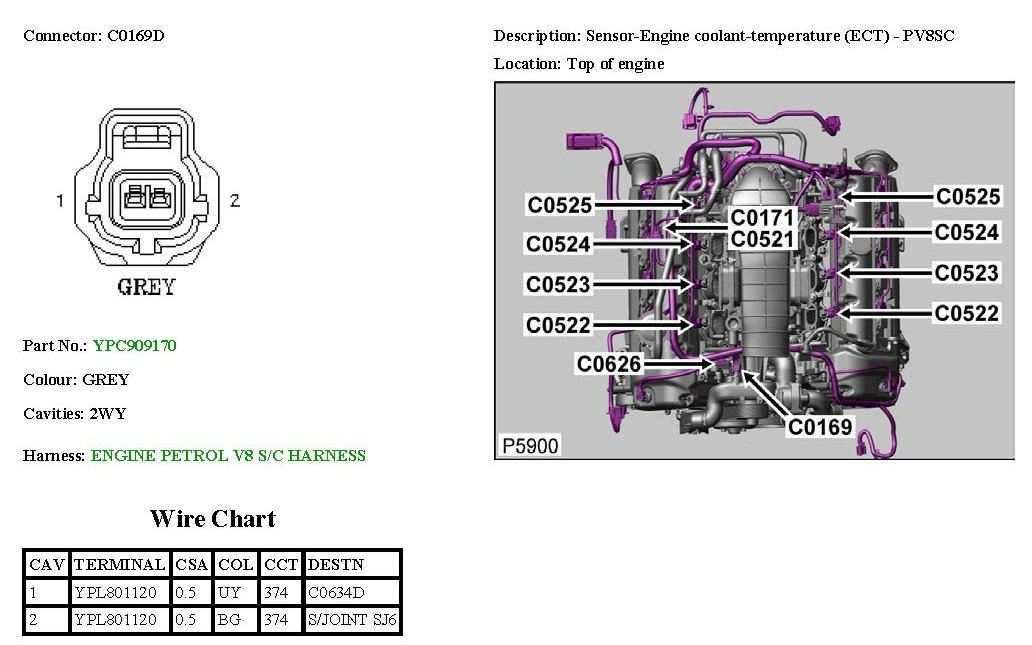

C0169D:
