Heater Core Case: Service and Repair

Plenum Chamber

Service Repair No - 80.15.62

Removal
1. Secure the hood in the service position.
^ Release the support struts.
2. Disconnect the battery ground cable.
3. Release the hood seal from the plenum chamber.







4. Disconnect the battery positive cable from the bulkhead.
^ Release the cover.
^ Remove the nut.

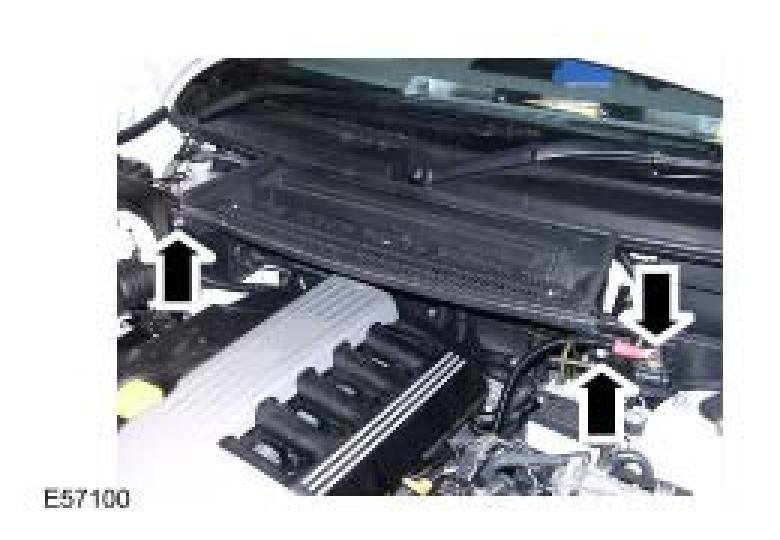

5. Remove the plenum chamber.
^ Remove the 2 nuts.

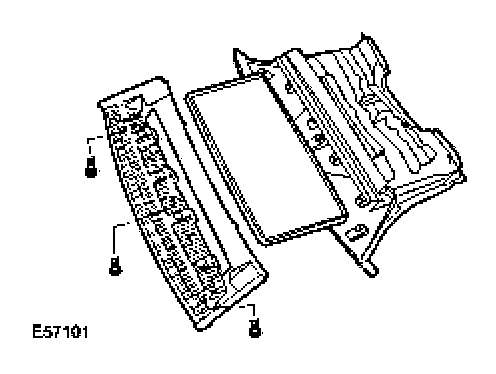

6. Remove the air intake cover.
^ Remove the 3 screws.

NOTE: Do not disassemble further if the component is removed for access only.

7. Remove the pollen filter.







Installation
1. Install the pollen filter.
2. Install the air intake cover.
^ Tighten the screws.
3. Install the plenum chamber.
^ Tighten the nuts to 10 Nm (7 ft. lbs.).
4. Connect the battery positive cable.
^ Tighten the nut to 20 Nm (15 ft. lbs.).
^ Secure the cover.
5. Attach the hood seal.
6. Connect the battery ground cable.
7. Connect the hood support struts.
